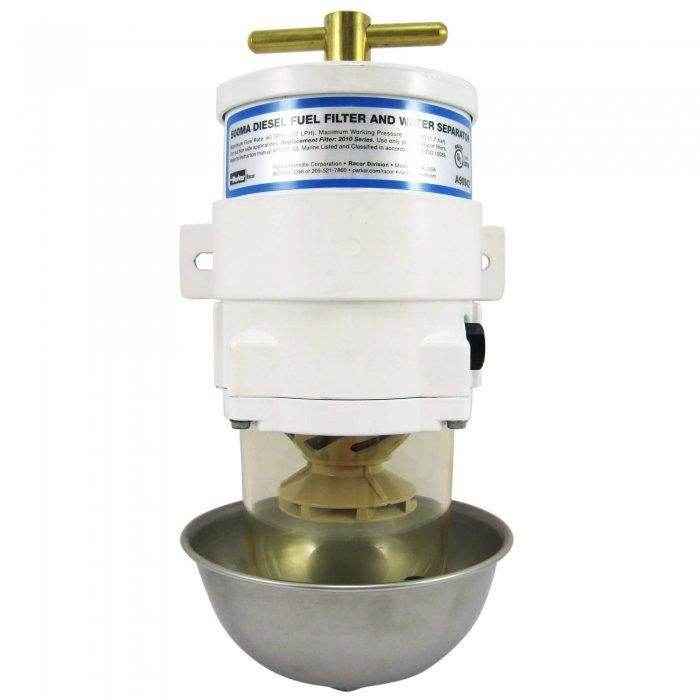

10 Micron Turbine Series Diesel Fuel Filter Assembly | Racor 500MA10
10 Micron Turbine Series Diesel Fuel Filter Assembly | Racor 500MA10
Turbine series water separating fuel filter features a patented 3-stage filtration process to protect diesel marine engines from water and contaminants in fuel.
- Racor 500MA10 marine turbine series fuel filter assembly
- For diesel fuel only
- 60 GPH maximum flow rate
- Includes installed 10 micron fuel filter element
- 98% efficient at 10 micron element is designed for secondary or primary filtration
- Removes water, dirt, rust, and other particulates from incoming diesel fuel
- Water separation, coalescing and filtration 3 stage process
- Separates and removes water through the turbine's centrifugal action
- See-thru inspection bowl won't fade or discolor from alcohol, additives or UV exposure
- Installs on the vacuum side of the fuel transfer pump
- Constructed of corrosion resistant materials to withstand the marine environment
- 3/4 in.-16 UNF fuel ports
- UL approved
- Optional shut-off drain valve P/N RK 19492 - sold separately
- Replacement 10 micron Aquabloc filter element P/N 2010TM-OR
