How to Rebuild Sterndrive Water Pump

A sterndrive that runs hot at idle, loses water pressure, or starts the overheat alarm after winter layup usually points to one place first - the water pump. If you are figuring out how to rebuild sterndrive water pump assemblies correctly, the real job is not just swapping an impeller. It is inspecting the entire pump housing, wear surfaces, seals, and related hardware so the drive can deliver consistent cooling water under load.

When a sterndrive water pump rebuild makes sense

On most sterndrive applications, the raw water pump in the lower unit is a service item. Impellers take a set over time, vanes crack, housings wear, and stainless wear plates can score. If the pump base and surrounding components are still serviceable, a rebuild kit is often the right repair. If the housing is badly melted, the cup is damaged beyond reuse, or the lower unit has additional corrosion and sealing issues, a more complete replacement may be the better path.

That distinction matters. A quick impeller-only repair can get a boat back in the water, but if the wear plate is grooved or the cup is distorted, output may still be weak. For owners trying to avoid repeat teardown, a full pump rebuild is usually the more reliable move.

How to rebuild sterndrive water pump the right way

The exact procedure varies by drive family - MerCruiser Alpha, Bravo, OMC Cobra, Volvo Penta, and other sterndrives all have model-specific differences. Bolt patterns, shift shaft handling, water tube alignment, and seal orientation can change from one unit to the next. The basic workflow stays consistent, but fitment and parts breakdowns matter.

Before taking anything apart, confirm the drive model and serial range. That is the difference between ordering a kit that drops in cleanly and one that leaves you with the wrong gaskets or housing parts on the bench.

Start with the drive removed and positioned securely. Once the lower unit or gearcase section is accessible according to the service procedure for that drive, remove the water pump housing carefully and keep components in order. Some technicians lay parts out in removal sequence because orientation matters, especially for keys, seals, grommets, and upper housings.

Inspect more than the impeller

The impeller gets most of the attention, but it is only one part of the pump assembly. Look closely at the housing bore, cup, plate, and pump base. If you see scoring, heat discoloration, cracks, or melted plastic, do not assume the new impeller will solve it. A damaged surface lets water slip past instead of being pushed through the cooling system.

Check the impeller key and keyway for damage. Inspect gaskets and O-rings for flattening or cuts. On drives that use seals in the pump body, verify lip direction and shaft condition before reassembly. If the driveshaft has corrosion or grooves where seals ride, even a new kit may not hold prime the way it should.

Clean the mating surfaces completely

This part is easy to rush and expensive to ignore. Old gasket material, corrosion scale, or debris under the wear plate can create uneven sealing and reduce pump efficiency. Clean the base and mating surfaces thoroughly without gouging aluminum components.

If corrosion is heavy around the pump cavity, pause and evaluate the base condition. Minor cleanup is normal. Deep pitting around sealing areas is a different issue and can turn a rebuild into a short-term fix.

Reassembly details that prevent repeat failure

A lot of sterndrive pump problems come from installation errors, not bad parts. The impeller vanes need to be bent in the correct rotation direction during assembly. Install it dry and you risk damaging the blades on first startup. Use the lubricant specified by the kit or service manual so the impeller is protected until water reaches the pump.

Set the woodruff key or drive key carefully. If it shifts during assembly, the impeller may not seat correctly, and the housing can be damaged when bolts are tightened. This is one of the more common bench mistakes.

When lowering the housing over the impeller, rotate the driveshaft in the proper direction to fold the vanes correctly. Do not force the housing down unevenly. If it does not seat, stop and verify impeller alignment, cup position, and gasket stack order.

Torque matters here. Over-tightening can distort plastic housings and crush gaskets. Under-tightening can allow air leaks and poor pump prime. Follow the spec for your exact drive whenever possible.

Don’t ignore the water tube and seals

On many sterndrives, the pump rebuild goes smoothly until reassembly of the water tube or outlet grommet. A misaligned tube can block flow or prevent the upper and lower sections from seating fully. This can look like a shifting problem or a housing fit problem when it is really a cooling passage alignment issue.

Replace worn grommets and inspect the tube for deformation or corrosion. If the tube does not enter cleanly, forcing the unit together can damage the seal and create low water delivery that shows up only after launch.

Parts you should consider replacing during the rebuild

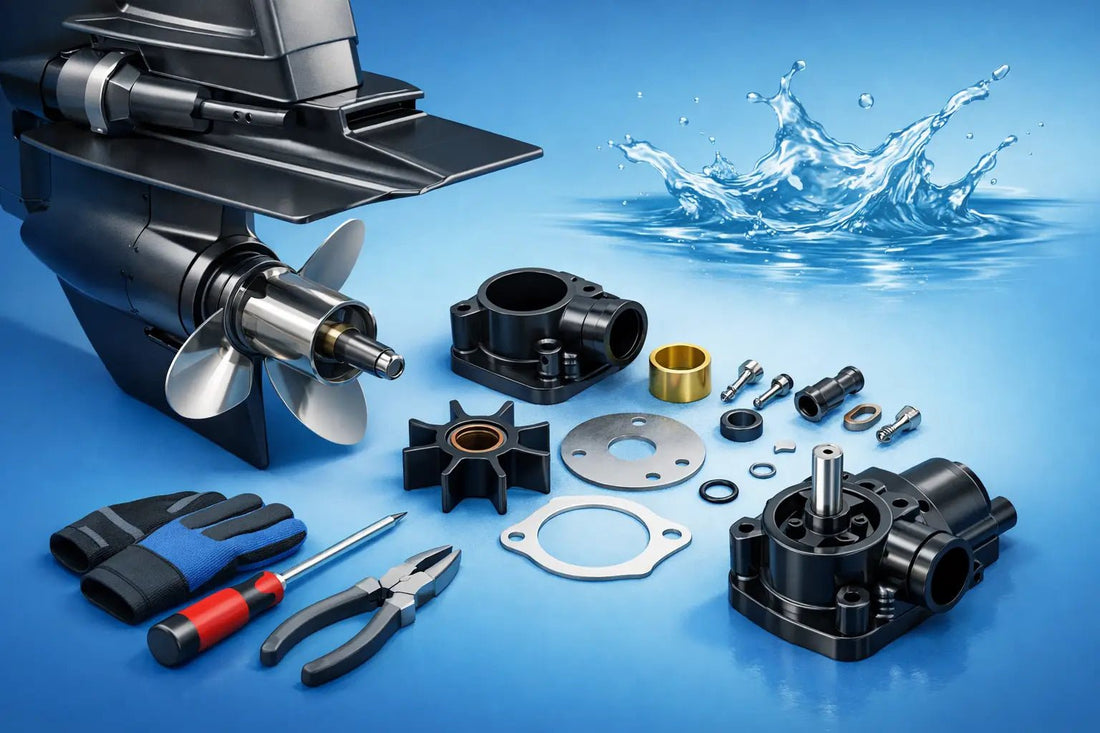

If you already have the drive apart, this is the time to replace the full set of normal wear items in the pump assembly. Depending on the drive, that may include the impeller, housing, cup, wear plate, upper and lower gaskets, O-rings, keys, seals, grommets, and mounting hardware. Reusing old small parts is where many otherwise solid repairs go sideways.

This is also the right time to look at nearby service items. If the lower unit is off and access is good, inspect shift shaft seals, gear lube condition, and visible corrosion points. You do not need to turn a pump job into a full drive overhaul, but it makes sense to catch obvious issues while the area is open.

For fit-sensitive repairs, model-specific lookup is worth the extra minute. A kit that matches the exact drive and serial range helps avoid the common mismatch between similar-looking housings, plates, and seals.

Common mistakes when rebuilding a sterndrive water pump

The biggest mistake is treating every low water flow problem as an impeller problem. If the boat has overheated badly, impeller fragments may have moved downstream into the cooling circuit. Rebuilding the pump without checking for broken vane pieces in hoses, coolers, or passages can leave the restriction in place.

Another mistake is ignoring the reason the old pump failed. If the impeller came out melted, the drive may have been run dry, the pickup may have been blocked, or the housing may already have been worn enough to lose water supply. Rebuilding without identifying the cause can lead to the same failure again.

Technicians also run into trouble by mixing old and new components from different kits. Tolerances in the cup, plate, and housing work as a system. If one piece is worn and another is new, pump output may not recover the way you expect.

Testing after the rebuild

Once the drive is back together, verify cooling performance before assuming the repair is complete. Initial startup should show a strong, consistent water supply based on the requirements of that engine and drive package. Watch engine temperature closely and confirm there is no delayed overheating at idle or when bringing rpm up.

If water flow still seems weak, do not keep running it in hopes that it clears itself. Recheck pickup passages, water tube alignment, housing installation, and any downstream blockage from old impeller debris. On some setups, an engine-mounted raw water pump or thermostat issue can complicate the diagnosis, so the sterndrive pump should be evaluated as one part of the entire cooling system.

Choosing the right rebuild parts

A dependable sterndrive water pump rebuild starts with exact fitment. Brand family, drive series, year range, and serial break all matter. If you are sourcing parts through a catalog-driven supplier such as MacombMarineParts.com, use the model-based navigation and illustrated breakdowns to confirm the pump kit contents match your application before teardown. That is especially useful for shops and owners working across multiple MerCruiser, OMC Cobra, and Volvo Penta platforms.

For high-hour drives or units with visible housing damage, choose the more complete kit instead of the bare minimum. It reduces the chance of reopening the drive because one reused wear item could not support the new impeller.

A sterndrive water pump rebuild is not complicated in theory. The difference between a repair that lasts and one that comes back on the trailer is usually inspection, fitment, and attention to sealing surfaces. Take the extra time on the bench, and the cooling system will usually tell you right away that the work was done right.
