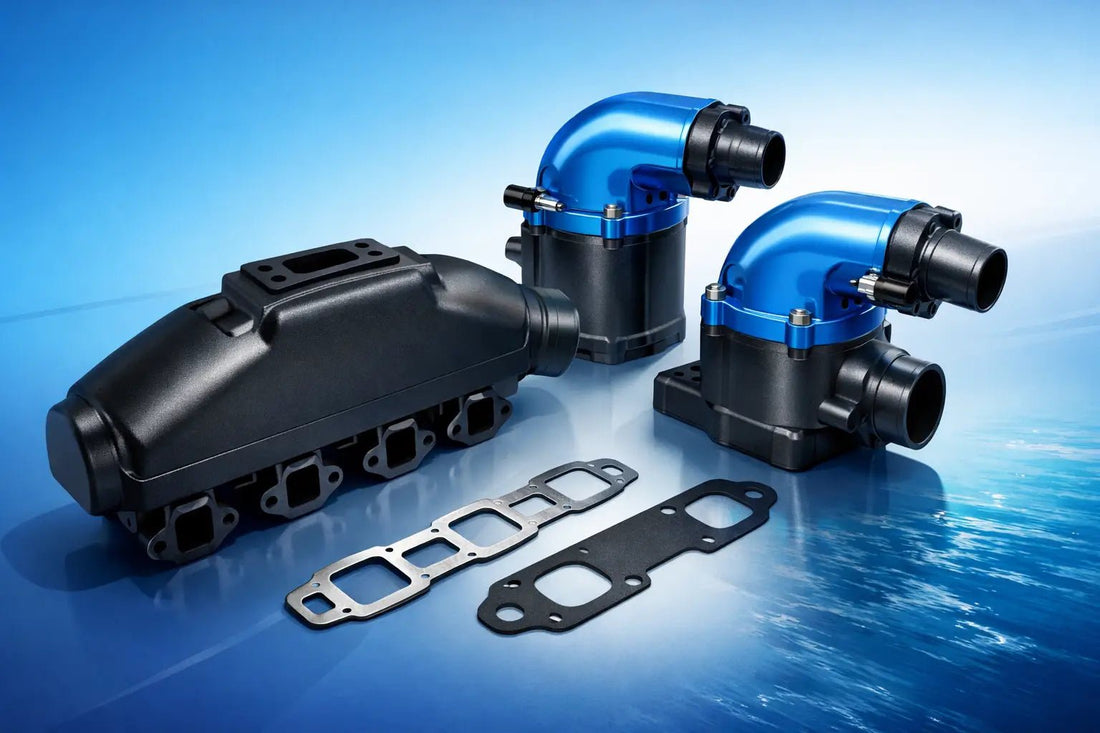

Crusader 6.0L Exhaust Manifolds and Risers
A Crusader inboard that starts clean, idles well, and still runs hot at the exhaust side usually points you toward one system first: crusader 6.0l exhaust manifolds and risers. These parts do more than route exhaust overboard. They manage water flow, protect the engine from water intrusion, and take constant abuse from heat, scale, and corrosion.
On a marine engine, manifolds and risers are wear items. That catches some boat owners off guard, especially if the engine itself has good compression and otherwise strong performance. But exhaust components live in one of the harshest environments on the boat, and when they begin to fail, the result can move from minor performance issues to major engine damage.
What crusader 6.0l exhaust manifolds and risers do
The manifold bolts to the cylinder head and collects exhaust from the engine. The riser, sometimes called the elbow, mounts at the outlet side of the manifold and helps direct exhaust and cooling water into the exhaust hose or downstream exhaust path. In a water-cooled marine setup, these parts work together to keep exhaust gas temperatures under control while maintaining separation between the engine's combustion side and incoming cooling water.
That separation matters. If internal corrosion opens a path where it should not, water can enter the exhaust ports or cylinders. In a best-case scenario, you catch it early and replace components before damage spreads. In a worst-case scenario, the engine ingests water, leading to misfire, hard starting, rust in cylinders, bent rods, or complete failure.
This is why technicians treat manifolds and risers as preventive maintenance items, not just replacement parts after a breakdown.
Why these parts fail on Crusader 6.0L engines
Heat cycling is constant. Every outing takes the castings from ambient temperature to operating temperature and back down again. Inside those passages, raw water or lake water leaves behind minerals, salt, scale, and corrosion byproducts. Even in freshwater boats, internal restriction builds over time.
Saltwater use accelerates the process, but freshwater does not eliminate it. Storage conditions also matter. Boats that sit for long periods, especially with incomplete winterization or trapped moisture, can see internal corrosion advance faster than expected. The gasket surfaces, water jackets, and mating faces between the manifold and riser are common trouble areas.
There is also the fitment issue. Crusader 6.0L applications can vary by model year, cooling configuration, and exhaust layout. Not every manifold or riser that looks close is actually correct. Port shape, bolt pattern, outlet angle, and spacer requirements all have to match the engine application.
Common signs your manifolds and risers need attention
Some failures are obvious, but many start quietly. A rust track at the gasket seam, water staining near the riser joint, or a persistent hot smell after shutdown can be early warnings. On engines that are already restricted internally, you may notice elevated operating temperature, reduced top-end performance, or uneven exhaust flow.
Other symptoms are more serious. Water in a cylinder after sitting overnight, unexplained hard starting, steam in the exhaust, or plugs that show signs of moisture can point to internal leakage. If one bank looks different from the other, that is worth investigating right away.
External appearance alone is not enough to judge condition. A manifold can look usable on the outside and still have severe internal corrosion. That is why service history matters. If the age of the parts is unknown, inspection becomes more urgent.
When replacement makes more sense than inspection alone
There are cases where pulling the risers for inspection is reasonable, especially when you are trying to confirm internal condition before peak season. But once corrosion is established, replacing the full set often makes more sense than trying to extend service life a little longer.
Mixing old and new components can work in limited situations, but it is not always the best repair. A new riser on a heavily aged manifold does not reset the condition of the assembly. Likewise, reusing old mounting hardware, gaskets, or spacers can create sealing problems that look like part failure when the issue is actually incomplete service.
For many owners and service departments, the practical move is to treat the manifold, riser, and related gaskets as a matched service job. That reduces repeat labor and lowers the chance of having to reopen the same area after a short interval.
Fitment checks before ordering Crusader 6.0L exhaust manifolds and risers
This is where a lot of preventable mistakes happen. Crusader engines may share broad displacement labels, but that does not guarantee identical exhaust hardware across all versions. Before ordering, confirm the exact engine model information, serial range if available, and whether the boat uses full freshwater cooling or raw water cooling.
You also need to verify whether the application uses specific elbows, spacers, or block-off style gaskets. Outlet diameter and angle matter because they affect hose alignment and downstream clearance. Mounting surface style matters too. Even small differences can turn a straightforward install into an avoidable return and more downtime.
A model-specific lookup or illustrated parts breakdown is usually the fastest path to the right match. For buyers who maintain multiple boats or service customer vessels, that step saves time compared with trying to identify castings by appearance alone.
Materials, cooling type, and service life
Not every replacement is built the same way, and service life depends on more than brand name. Material quality, internal casting finish, water passage design, and coating all influence how a manifold or riser holds up in marine use.
Cooling type changes the equation. A fully freshwater-cooled engine may still send raw water through parts of the exhaust system, depending on configuration, so owners should not assume closed cooling means the exhaust is protected the same way as the block. Raw water exposure at the manifold or riser remains a service factor.
Usage pattern matters too. A boat run regularly and brought to full operating temperature may actually avoid some moisture-related issues seen in boats that sit. On the other hand, heavy use in saltwater can shorten replacement intervals. There is no single hour-based rule that fits every Crusader 6.0L installation.
Installation details that matter
A correct installation is more than bolting castings in place. Mating surfaces need to be clean and flat. Gasket orientation has to match the cooling passage design. Hardware should be correct for the application, and torque needs to be even and in sequence to avoid sealing problems.
Hose condition deserves attention at the same time. If the exhaust hose is soft, cracked, heat-damaged, or swollen at the ends, replacing manifolds and risers without addressing the hose can leave a weak point in the system. Clamps, drain fittings, sensors, and plugs should also be inspected while access is open.
After installation, monitor the engine during first run-up. Check for leaks at all joints, verify normal operating temperature, and inspect the exhaust discharge for balanced flow. A short recheck after initial heat cycles is a good practice, especially on a fresh install.
Repair planning for owners and service shops
If the boat is in-season and showing early symptoms, the temptation is to postpone exhaust work until haul-out. Sometimes that is reasonable, and sometimes it is risky. If there is any sign of water intrusion, active leakage, or overheating tied to exhaust restriction, delay can cost far more than the repair itself.
For scheduled maintenance, offseason planning is usually the cleaner approach. It gives you time to confirm fitment, replace supporting gaskets and hardware, and inspect adjacent cooling and exhaust components while the system is apart. For marinas and repair shops, that also helps avoid the rush of urgent spring failures.
MacombMarineParts.com serves this kind of repair well because buyers can work through brand and application paths rather than guessing at universal-looking parts. For Crusader exhaust components, accuracy is the whole job.
What to watch after replacement
A new set of manifolds and risers does not end the maintenance conversation. Keep an eye on cooling water quality, drain the system correctly for storage, and pay attention to any exhaust temperature changes, steam, or rust marks around gasket joints. Periodic inspection gives you a better chance of catching issues before they become engine problems.
If your Crusader 6.0L has unknown service history, treating the exhaust side as a priority item is usually the safer call. These are not glamorous parts, but they protect the engine every time you turn the key. Handle them like critical components, and the rest of the season tends to go a lot smoother.
