Keeping Your Cool: The Ultimate Guide to Marine Engine Exhaust Manifolds
Keeping Your Cool: The Ultimate Guide to Marine Engine Exhaust Manifolds
If you own a boat, you know that the engine is the heart of your vessel. But even the strongest heart can fail if it can’t "exhale" properly. In the world of marine mechanics, the exhaust manifold is one of the most critical—yet often overlooked—components of your propulsion system.
At MacombMarineParts.com, we see the aftermath of manifold neglect every day. This guide will walk you through how these parts work, how to spot trouble, and why replacing them is the best insurance policy you can buy for your boat.
What Does an Exhaust Manifold Actually Do?

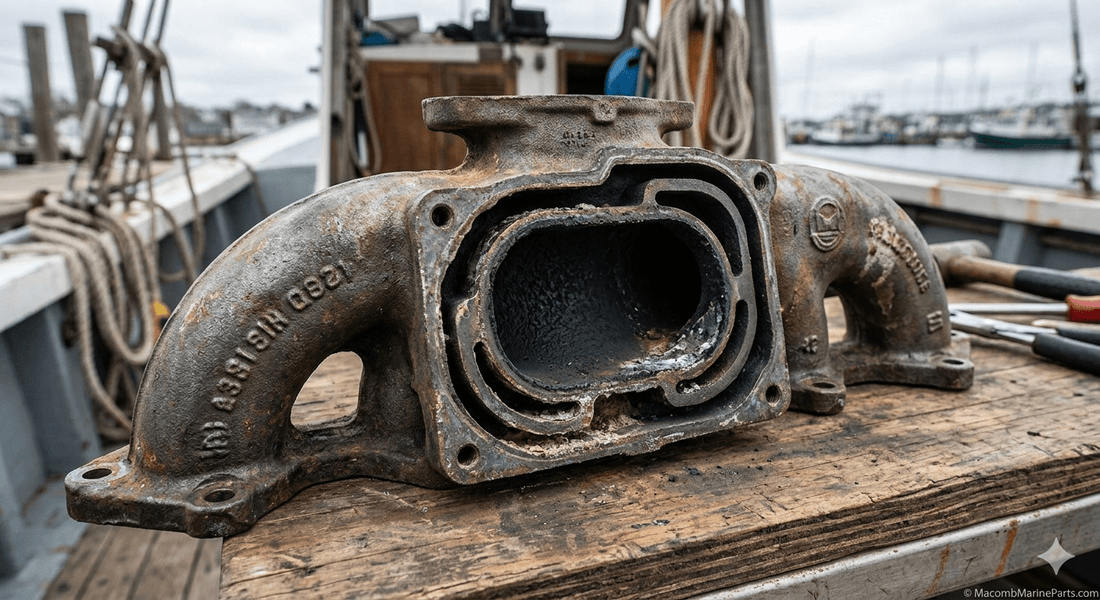

In a car, exhaust pipes just get hot. In a boat, things are much more complex. Because your engine sits in a confined hull, it can’t rely on airflow to stay cool. Marine manifolds are "water-jacketed." They carry hot exhaust gases in an inner chamber while surrounding them with a layer of cooling water in an outer chamber.
This keeps engine room temperatures safe and prevents your boat from becoming a fire hazard. However, it also means that only a thin wall of metal separates your engine’s cylinders from a catastrophic flood of water.
Troubleshooting & Diagnostics: The Warning Signs
Manifold failure isn't always a "bang." Often, it’s a whisper that turns into a roar. Watch for these red flags:
1. The "Leaking Joint" (External Corrosion)
Look at the seam where the manifold meets the riser (the elbow). Do you see streaks of rust or white chalky deposits?
-
The Diagnosis: The gasket has failed. If you see it on the outside, there is a high probability it’s leaking on the inside too.
2. Overheating at High RPMs
If your temperature gauge climbs only when you’re pushing the throttle, your cooling passages are likely restricted.
-
The Diagnosis: Over time, scale and rust build up inside the water jackets, narrowing the path for cooling water. It’s like a clogged artery in a human heart.
3. "Milky" Oil
Pull your dipstick. If the oil looks like a chocolate milkshake, you have water intrusion.
-
The Diagnosis: A wall inside the manifold has likely thinned and perforated, allowing cooling water to dump back into the exhaust ports and into the oil pan. Stop running the engine immediately.
4. Hard Starting or "Hydrolock"
If the engine struggles to turn over or feels "stuck," water may have entered the cylinders.
-
The Diagnosis: When a manifold fails internally while the engine is off, water can seep into the cylinders. Trying to start a hydrolocked engine can bend connecting rods and destroy your motor.
The Saltwater Factor: A Recipe for Corrosion
If you boat in saltwater, your manifolds are on a different clock. Saltwater is incredibly corrosive, especially when heated.
-
The 5-Year Rule: In saltwater environments, exhaust manifolds generally have a lifespan of 3 to 5 years. Even if they look fine on the outside, the internal cooling passages are being eaten away.
-
Flushing is Mandatory: If you don't have a closed cooling system, flushing your engine with fresh water after every outing is the only way to slow the decay. However, flushing only delays the inevitable; it doesn't stop it.
Maintenance Tips to Extend Manifold Life
-
Inspect the Risers Yearly: Remove the exhaust elbows and check the mating surfaces. If they aren't perfectly flat, the gasket won't seal.
-
Replace Zinc Anodes: If your manifolds are equipped with sacrificial anodes, check them every few months.
-
Check Bolt Torque: Heat cycles can cause bolts to loosen. Ensure your manifold bolts are torqued to manufacturer specifications to prevent gasket blowouts.
Why Buy from MacombMarineParts.com?
When it’s time to replace your manifolds, you face a choice: wait for a total engine failure or invest in high-quality replacements. At MacombMarineParts.com, we specialize in providing OEM and high-grade aftermarket manifolds for Mercruiser, Volvo Penta, Crusader, and more.
Why Choose Us?
-
In-Stock Inventory: We carry the manifolds, risers, and gaskets you need to get back on the water this weekend.
-
Expert Support: Not sure if you need a 3-inch or 4-inch riser? Our team knows marine engines inside and out.
-
Quality Guaranteed: We only stock brands that meet or exceed original equipment standards.
-
Fast Shipping: We know the season is short. We get your parts out the door and to your dock fast.
Don’t risk a $10,000 engine over a $500 manifold. ### [Shop Our Exhaust Manifold Catalog Now]
Keep your engine dry and your summer long. For all your marine engine needs, trust the experts at MacombMarineParts.com.
