Boat Engine Cooling System Guide

An engine that runs hot on the water rarely gives you much warning. One weak impeller, one restricted hose, or one scaled-up passage can turn a normal day into an overheat alarm, reduced power, or a shutdown at the dock. This boat engine cooling system guide is built for owners and technicians who need a clear, parts-focused understanding of how marine cooling works, where it fails, and what to check before damage spreads.

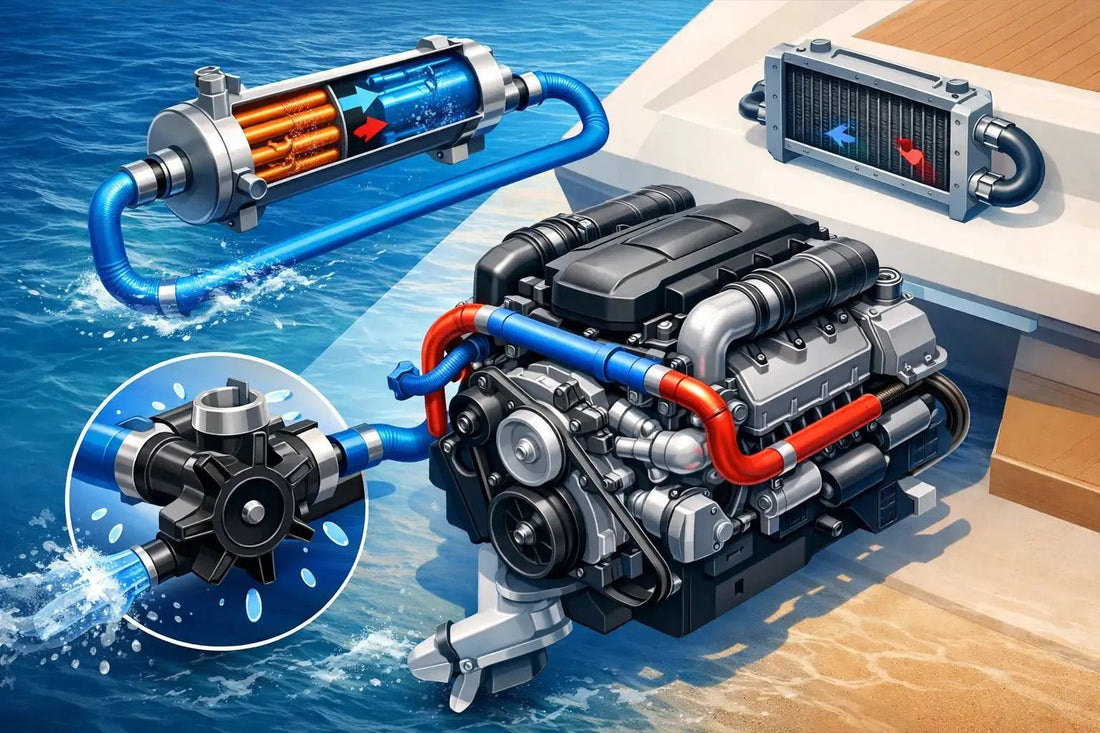

How a boat engine cooling system works

Marine engines manage heat differently than automotive engines because the operating environment is different. Instead of relying only on a radiator and airflow, most boats use raw water, closed cooling, or a combination of both to control engine temperature.

In a raw-water-cooled system, water is pulled from outside the boat through the intake and moved by a rubber impeller pump through the engine and exhaust. The system is simple and common on many outboards, sterndrives, and some inboard applications. It is also more exposed to debris, silt, corrosion, and mineral buildup, especially in saltwater or shallow-water use.

In a closed-cooling system, coolant circulates inside the engine like it would in an automotive application, while raw water passes through a heat exchanger to remove heat from that coolant. This design adds parts, but it usually offers better long-term protection inside the engine block and cylinder heads. Full systems and half systems vary by engine family, so it matters which configuration your engine uses before ordering components.

The basic path is straightforward. Water enters through the pickup, passes through the impeller or sea pump, moves through coolers or a thermostat housing, then through the block, manifolds, risers, or heat exchanger depending on the system. If flow slows down anywhere in that path, temperature rises quickly.

Boat engine cooling system guide to major components

If you are diagnosing an overheat condition, it helps to think in terms of flow, restriction, and control. Most cooling problems trace back to one of those three categories.

The raw water pump or impeller is often the first place to look. Rubber impellers are wear items. Vanes can harden, crack, or break off after sitting dry, running in sandy water, or operating beyond service intervals. Even when the pump still moves some water, reduced output can show up first at idle or under load.

Thermostats control operating temperature, but they can also create confusion during diagnosis. A stuck-closed thermostat can cause fast overheating. A stuck-open thermostat may keep the engine too cool, which is not harmless either because it can affect combustion efficiency and moisture control. On some marine engines, thermostat housings also act as distribution points, so corrosion inside the housing can affect flow even when the thermostat itself is fine.

Hoses and clamps deserve more attention than they usually get. Soft spots, internal collapse, kinks, and loose connections can reduce flow or allow air leaks on the suction side of the pump. A hose that looks acceptable from the outside can still be restricting flow internally.

On closed-cooled engines, the heat exchanger is critical. If tubes are fouled with scale, growth, or debris, coolant temperature climbs even though the raw water pump may still be working. End caps, seals, and bundle condition all matter. The same applies to oil coolers and power steering coolers, which can trap debris before it reaches the rest of the system.

Exhaust manifolds and risers are also part of the cooling picture. When passages narrow from rust or scale, water flow drops and exhaust temperature rises. In severe cases, that can lead to manifold failure or water intrusion. This is one area where replacement timing matters because waiting too long can turn a maintenance item into a major repair.

Common causes of overheating

Most overheating complaints are not mysterious. The challenge is that several different failures produce similar symptoms.

A worn impeller is still the most common issue across many marine platforms. It is inexpensive compared with the damage an overheat can cause, which is why scheduled replacement makes more sense than stretching service life. If an impeller fails and pieces break off, those fragments can lodge downstream in hoses, coolers, or thermostat passages. Replacing the impeller alone may not fully restore flow.

Blocked intakes are another routine problem. Plastic bags, weeds, shells, and even heavy marine growth can reduce raw water supply. On trailered boats, mud dauber nests or storage-related debris can cause trouble before launch. On sterndrives and outboards, intake screens and pickup passages need to be inspected, not assumed clear.

Corrosion and mineral scale are slower problems, but they are common on older engines and saltwater applications. The effect is cumulative. Flow drops a little, temperatures creep up under load, and the problem becomes obvious only when ambient water temperature rises or the boat is run harder than usual.

Belt-driven pump issues also show up more than many owners expect. A loose or glazed belt can reduce circulation without failing outright. On engines with circulating pumps separate from the raw water pump, both components have to be considered. One can be healthy while the other is not.

Raw water vs closed cooling

A practical boat engine cooling system guide should address the trade-off, because many buyers eventually face repair decisions that make them compare both systems.

Raw water cooling has fewer parts and lower upfront complexity. That can mean easier service and lower immediate replacement cost. For freshwater boats with consistent maintenance, it can be a reasonable setup. The downside is that the engine itself is more exposed to internal corrosion and scale over time.

Closed cooling adds heat exchangers, caps, hoses, coolant, and more service points. That means more components to inspect and replace. It also means better internal engine protection and often better durability in saltwater or brackish environments. The right choice depends on where the boat runs, how often it is used, and whether you are maintaining for minimum short-term cost or longer engine life.

There is no universal answer. A freshwater-only runabout and a saltwater cruiser do not have the same priorities.

What to check before ordering parts

Fitment errors waste time, and cooling systems are full of engine-specific variations. That is especially true across MerCruiser, Volvo Penta, OMC Cobra, Crusader, Yamaha, Johnson/Evinrude, and other major marine platforms.

Start with the exact engine model, serial number, and cooling configuration. Do not assume two engines with the same displacement use the same thermostat housing, impeller kit, or circulating pump. Production breaks, drive style, and closed-cooling conversions all matter.

Next, identify whether you need the wear item only or the full repair package. For example, an impeller service may call for a complete kit with wear plate, cup, gasket, O-rings, and housing seals rather than the impeller alone. The same logic applies to thermostat service, heat exchanger end-cap seals, or manifold and riser replacement. Reusing old seals to save a few dollars often leads to repeat labor.

If the system has overheated hard, inspect beyond the first failed part. A damaged impeller can leave debris in the oil cooler. A restricted cooler can then overheat the replacement impeller. That cycle is common and avoidable.

For buyers sourcing parts online, illustrated breakdowns and model-based lookup save time. That is where a marine-specific supplier earns its keep. Macomb Marine Parts, for example, is structured around fitment-first navigation so buyers can work from engine family, brand, and application instead of guessing from generic descriptions.

Preventive maintenance that actually matters

Cooling system maintenance is not glamorous, but it is one of the cheaper ways to prevent major engine work. The service interval depends on engine type, water conditions, storage habits, and annual hours, so there is no single schedule that fits every boat.

Impellers should be treated as routine service items, not run-to-failure parts. Thermostats, gaskets, and housing seals should be checked when service history is uncertain. Heat exchangers and coolers benefit from periodic inspection and cleaning, especially in saltwater service. Hoses, clamps, and belts should be inspected at the start of the season and again if you notice temperature changes, steam, reduced water discharge, or alarms.

Flushing matters too, but only if it is done consistently and correctly. A one-time flush after months of neglect does not reverse internal damage. Winterization also affects cooling components because trapped water, improper draining, or old coolant can create damage that does not show up until the next launch.

When temperature starts creeping up, the smart move is early diagnosis. Marine engines usually get more expensive the longer an overheat problem is ignored. A bad impeller is manageable. A warped head, failed manifold, or water-damaged engine is not.

The practical takeaway is simple: treat the cooling system as a complete system, not a collection of separate parts. Verify the engine and configuration, inspect the full water path, and replace components based on condition and service interval rather than wishful thinking. That approach keeps repair costs predictable and helps keep the boat where it belongs - running, not waiting on a tow.
