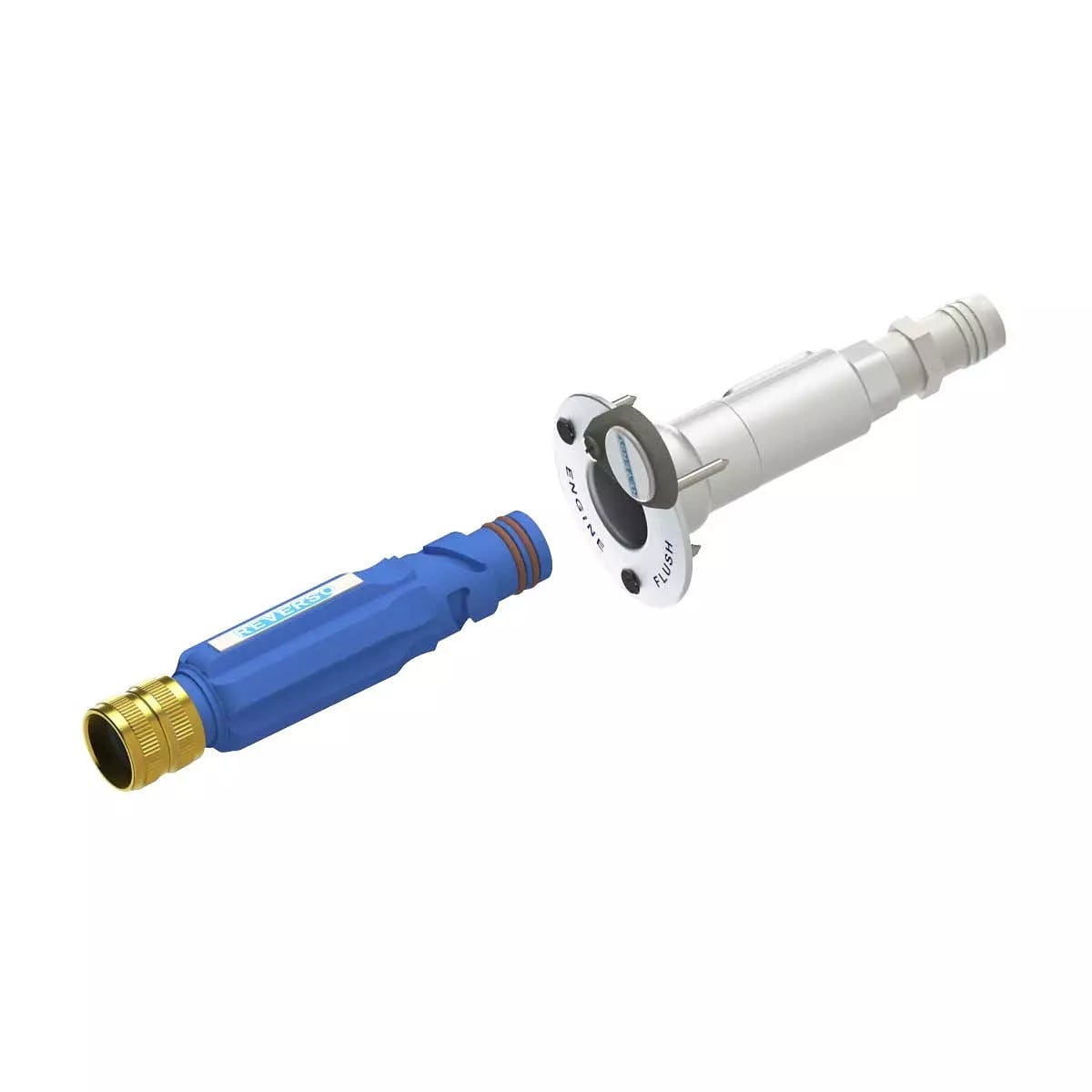

OFS Quick Disconnect Deck Kit, Straight Fitting | Reverso 35-3952-01

Reverso 35-3952-01 OFS Quick Disconnect Deck Kit | Straight Fitting | 3/4" Hose Barb | OFS & OFS Pro

The Reverso #35-3952-01 is the complete quick disconnect deck kit for the Reverso Automatic Outboard Flushing System with a straight 3/4" hose barb fitting. Provides a permanent, deck-mounted fresh water inlet connection point for the OFS system, allowing a standard garden hose to be connected at the deck without accessing the OFS main unit or below-deck hose connections. Straight fitting configuration for installations where the hose runs in line with the deck port. Compatible with Reverso OFS and OFS Pro systems and previous OFS versions.

Part Details:

• Part Number: 35-3952-01 (Reverso)
• SKU: REVERSO-35-3952-01
• Manufacturer: Reverso
• Type: Quick Disconnect Deck Kit — Complete Assembly
• Fitting Style: Straight
• Fitting Size: 3/4 in. hose barb
• Compatible: Reverso OFS, OFS Pro, and previous OFS versions
• Condition: New

Additional Information

Full Deck Kit vs. Replacement Connection Kit — Which Do You Need?

Reverso offers two different deck connection products for the OFS system:

• 35-3952-01 (this product) — Complete Deck Kit: The full deck kit assembly including the deck housing and quick-disconnect connection hardware. Use this for a new OFS installation where no deck connection is currently present, or when replacing a complete failed or damaged deck assembly.
• 35-3952-08 — Replacement Connection Kit: Replacement quick-disconnect fittings only — for use when the deck housing is intact and only the connection fitting hardware needs replacement. Significantly lower cost when the housing is in good condition.

If your existing OFS deck housing is in good condition and only the quick-disconnect fittings are worn or damaged, order the 35-3952-08 instead. If the entire deck assembly needs replacement or you are installing OFS for the first time, order the 35-3952-01.

Straight Fitting — Routing Orientation:

The 35-3952-01 uses a straight 3/4" hose barb fitting. The straight configuration routes the internal hose directly in line with the deck port — appropriate when the below-deck hose can run straight down or in line from the deck fitting location without a direction change at the port. If your installation requires a direction change at the deck fitting due to space constraints or hose routing geometry, an elbow fitting configuration may be more appropriate. Contact Reverso or us at MacombMarineParts.com to confirm if an elbow deck kit variant is available for your installation.

How the OFS Deck Kit Works:

The deck kit mounts flush to a deck surface, transom, or gunwale and provides a weatherproof quick-disconnect connection point at the exterior of the vessel. To flush the engine, the operator connects a standard garden hose to the deck fitting, runs the OFS flush cycle, then disconnects the hose — without opening a hatch, accessing the bilge, or working near the engine. The quick-disconnect design allows fast hose connection and disconnection without tools. The 3/4" hose barb connects to the below-deck OFS inlet hose, which routes fresh water to the OFS main unit and engine.

OFS, OFS Pro, and Previous Versions — Compatibility:

The 35-3952-01 is compatible with Reverso OFS, OFS Pro, and previous OFS system versions. If you are unsure which OFS version is installed on your vessel, contact Reverso or us at MacombMarineParts.com with your OFS system model number.

Multi-Engine Installations:

For multi-engine setups, a separate deck kit is required for each engine's OFS system. Plan deck fitting locations to keep hose connections organized and accessible for each engine during flushing operations.

Installation Notes:

• Select a deck mounting location that is accessible for garden hose connection during flush operations — typically at or near the transom
• Confirm straight fitting orientation is appropriate for your below-deck hose routing before ordering
• Connect to the below-deck OFS inlet hose (see Reverso 35-3951-03 OFS Inlet Hose Kit) for the below-deck hose run to the OFS main unit
• Seal the deck penetration per Reverso installation documentation to prevent water intrusion
• Test for leaks at the deck fitting and all below-deck connections before returning the vessel to service

Frequently Asked Questions

1. What is the difference between this kit (35-3952-01) and the 35-3952-08?
The 35-3952-01 is the complete deck kit assembly — use for new installations or full deck assembly replacement. The 35-3952-08 is the replacement connection fitting kit only — use when the deck housing is intact and only the quick-disconnect fittings need replacement. The 35-3952-08 is significantly less expensive when only the fittings are worn.

2. Is this deck kit compatible with OFS Pro?
Yes — the 35-3952-01 is compatible with Reverso OFS, OFS Pro, and previous OFS versions.

3. Why does this kit use a straight fitting? Is there an elbow version?
The straight fitting routes the below-deck hose in line with the deck port. If your installation requires a direction change at the fitting due to space or routing constraints, contact Reverso or us at MacombMarineParts.com to confirm if an elbow deck kit variant is available.

4. Does this kit include the below-deck inlet hose?
No — the below-deck inlet hose is a separate component. See the Reverso 35-3951-03 OFS Inlet Hose Kit for the below-deck hose run between the deck fitting and the OFS main unit.

5. Can I use this deck kit for multiple engines?
One deck kit per engine OFS system. For twin-engine setups, order two deck kits and plan mounting locations to keep each engine's connection accessible and organized.
