Water Distribution Housing | QuickSilver 863631T1

QuickSilver Water Distribution Housing | 863631T1 | MerCruiser Sterndrive Cooling System

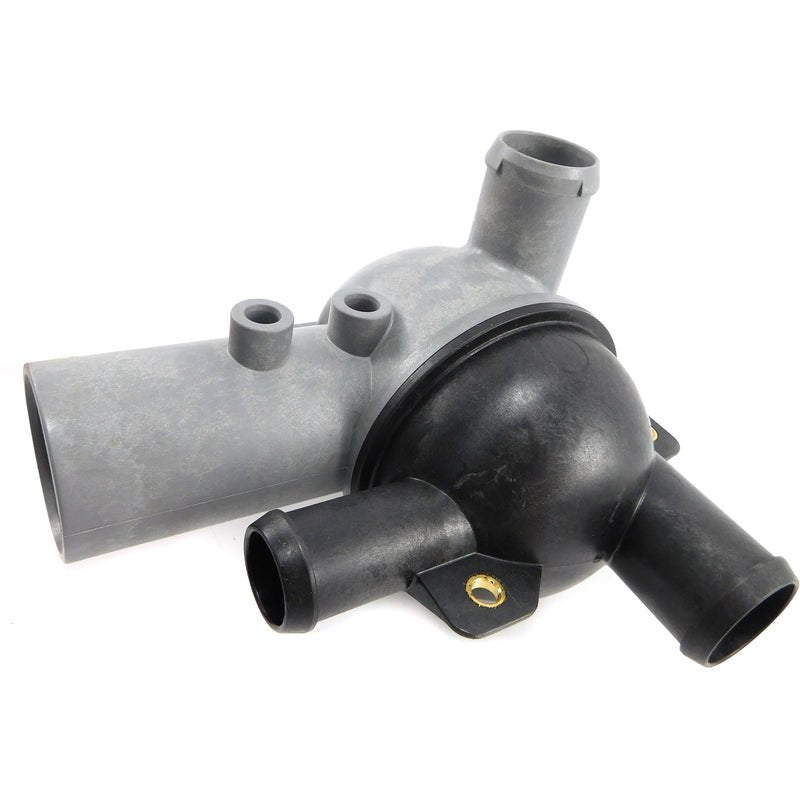

The QuickSilver #863631T1 is an OEM replacement water distribution housing for MerCruiser sterndrive engines. The water distribution housing routes raw water or coolant from the water pump through internal passages to the engine block, cylinder heads, and exhaust manifolds — it is the central distribution point for the entire raw water cooling circuit on the engine. A cracked, corroded, or warped water distribution housing causes coolant bypassing, uneven cooling across cylinders, chronic overheating, and in severe cases, head gasket failure and engine damage. QuickSilver is Mercury Marine's OEM parts brand — the 863631T1 is a genuine OEM component built to the original specification.

Part Details:

• Part Number: 863631T1
• Manufacturer: QuickSilver (Mercury Marine OEM)
• Type: Water Distribution Housing
• Application: MerCruiser sterndrive engines — verify fitment against your engine's parts diagram or service manual before ordering
• Condition: New, Genuine OEM QuickSilver
• Country of Origin: USA

Additional Information

What the Water Distribution Housing Does:

On a MerCruiser raw water cooled or closed cooling system sterndrive engine, the water distribution housing is the central manifold that distributes incoming coolant from the water pump to the engine block's coolant passages. It typically mounts to the front or side of the block and contains internal passages that direct coolant flow to both cylinder banks, the thermostat housing, and the exhaust cooling circuit. Because it interfaces with multiple cooling circuits simultaneously, a failure at the distribution housing affects the entire engine's thermal management — not just one cylinder or one bank.

Common Failure Modes:

• External corrosion and pitting — MerCruiser water distribution housings are aluminum; saltwater exposure and electrolysis cause pitting and eventual through-wall leaks; inspect the housing for white oxidation, surface pitting, or weeping coolant at sealing surfaces
• Gasket surface warpage — chronic overheating events warp the gasket mating surfaces, causing coolant bypass even with a new gasket installed; check for flatness before reusing the housing
• Internal passage blockage — scale, mineral deposits, and debris accumulate in the distribution passages over time, restricting flow and causing localized hot spots; a housing that is externally sound but internally scaled should be replaced rather than cleaned if passages are significantly restricted
• Crack from freeze damage — improper winterization that allows water to freeze in the housing will crack the casting; inspect for hairline cracks, particularly around bolt bosses and internal passage walls

Why OEM Matters on a Cooling System Component:

The water distribution housing interfaces with multiple gaskets, O-rings, and sealing surfaces simultaneously. OEM QuickSilver castings are dimensioned to the exact tolerances required for proper sealing at every interface. Aftermarket castings in this application vary in their dimensional accuracy, particularly at gasket surfaces and internal passage sizing, which can cause coolant leaks and flow restrictions that are difficult to diagnose. At $320, the OEM QuickSilver 863631T1 is the correct choice for a component this central to engine cooling integrity.

Frequently Asked Questions

1. How do I confirm this housing fits my MerCruiser engine?
Cross-reference part #863631T1 against your MerCruiser engine's parts diagram using your engine model designation and serial number. MerCruiser uses different water distribution housings across its engine families — do not assume compatibility based on engine displacement alone. Contact us at MacombMarineParts.com with your engine model and serial number and we'll confirm the correct part before you order.

2. What gaskets and O-rings are required when replacing the water distribution housing?
Replacing the water distribution housing requires new gaskets and O-rings at every sealing interface — do not reuse the old gaskets. The specific gasket kit required depends on your engine model. Refer to your MerCruiser service manual for the complete gasket and hardware list for your engine, and order all sealing components before beginning disassembly. Contact us at MacombMarineParts.com for help identifying the correct gasket set for your engine.

3. Can I repair a cracked or corroded water distribution housing instead of replacing it?
Marine aluminum repairs (welding or epoxy patching) on a water distribution housing are generally not recommended for a primary cooling system component under operating pressure and thermal cycling. A repaired housing that fails on the water can cause rapid overheating and severe engine damage. Replacement with a new OEM QuickSilver 863631T1 is the correct approach and eliminates the risk of a repair failure on a component this critical to engine survival.

4. Should I replace the thermostat and water pump impeller at the same time?
Yes — if the water distribution housing has failed due to overheating or corrosion, the thermostat and raw water pump impeller should be inspected and replaced as part of the same service. A thermostat stuck closed caused many housing failures; installing a new housing on a stuck thermostat will cause the new housing to fail for the same reason. The impeller should be replaced on any MerCruiser sterndrive that has experienced an overheating event, as impeller blades degrade rapidly under heat stress.
