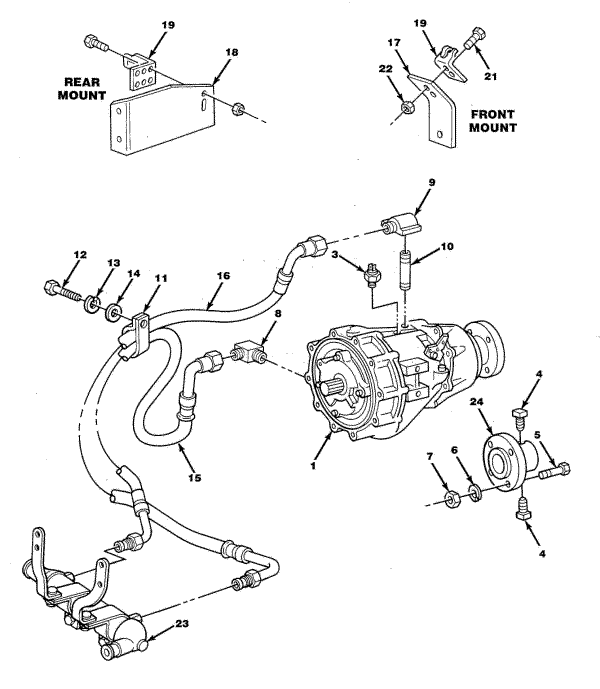

Model TB350XL/TB350HT
| Ref # | Part # | Description | 305 | 350 |
| RH | LH | |||
| 1 | 25471 | Transmission (1:1 Direct Drive) | 1 | 1 |
| 1 | 9001545 | Transmission (1.52:1 Reduction) | 1 | 1 |
| 1 | 25514 | Transmission (1.88:1 Reduction) | 1 | 1 |
| 1 | 1001512 | Transmission (2.57:1 Reduction) | 1 | 1 |
| 1 | 1001513 | Transmission (2.91:1 Reduction) | 1 | 1 |
| 2 | 20171 | Switch Kit, neutral start (not shown) | 1 | 1 |
| 2A | 25542 | Switch and O-Ring Assembly | 1 | 1 |
| 3 | 21088 | Sender, temperature alarm | 1 | 1 |
| 4 | 2000090 | Screw, set - coupler | 2 | 2 |
| 5 | 22136 | Bolt, coupling (1-1/4") ] 5" Flange | 4 | 4 |
| 6 | 103322 | Lockwasher, coupling bolt | 4 | 4 |
| 7 | 272231 | Nut, coupling bolt | 4 | 4 |
| 5A | 22135 | Bolt, coupling (1-1/4") ] 4" Flange | 4 | 4 |
| 6A | 103321 | Lockwasher, coupling bolt | 4 | 4 |
| 7A | 115287 | Nut, coupling bolt | 4 | 4 |
| 8 | 30526 | Elbow, transmission hose (90°) | 1 | 1 |
| 9 | 30516 | Elbow, transmission hose (90°) | 1 | 1 |
| 10 | 144603 | Nipple, pipe (3") - Reduction | 1 | 1 |
| 10A | 120278 | Nipple, pipe (2") - Direct Drive | 1 | 1 |
| 11 | 22112 | Clamp, oil hose mounting | 2 | 2 |
| 12 | 179835 | Bolt, clamp mounting to block (5/8") | 2 | 2 |
| 13 | 9417953 | Lockwasher, mounting clamp to block | 2 | 2 |
| 14 | 9418304 | Washer, mounting clamp to block | 2 | 2 |
| 15 | 18214 | Hose, Reduction gear (33") | 1 | 1 |
| 18211 | Hose, Direct Drive (39") | 1 | 1 | |
| 16 | 18210 | Hose (42-3/4") | 1 | 1 |
| 17 | 96341 | Shift Bracket (Front entry) | 1 | 1 |
| 18 | 97471 | Shift Bracket (Rear entry) | OPT | OPT |
| 19 | 21033 | Cable Clip, single cable | 1 | 1 |
| 20 | 22232 | Cable Clip, dual cable (not shown) | OPT | OPT |
| 21 | 443874 | Bolt, clip attaching (1/2") | 2 | 2 |
| 22 | 22440 | Nut, attaching bolt | 2 | 2 |
| 23 | 98259 | Oil Cooler (STD) | 1 | 1 |
| 23A | 98279 | Oil Cooler (cupro-nickel) | OPT | OPT |
| 24 | Coupler, propeller shaft (1" shaft) | |||
| 91685 | 4" Flange | AR | AR | |
| 91690 | 5" Flange | AR | AR | |
| Coupler, propeller shaft (1-1/8" shaft) | ||||
| 91686 | 4" Flange | AR | AR | |
| 91691 | 5" Flange | AR | AR | |
| Coupler, propeller shaft (1-1/4" shaft) | ||||
| 91687 | 4" Flange | AR | AR | |
| 91692 | 5" Flange | AR | AR | |
| Coupler, propeller shaft (1-3/8" shaft) | ||||
| 91688 | 4" Flange | AR | AR | |
| 91693 | 5" Flange | AR | AR | |
| Coupler, propeller shaft (1-1/2" shaft) | ||||
| 91689 | 4" Flange | AR | AR | |
| 91694 | 5" Flange | AR | AR | |
| Coupler, propeller shaft (1-3/4" shaft) | ||||
| N/A | 4" Flange | AR | AR | |
| 91695 | 5" Flange | AR | AR | |
| >Coupler, propeller shaft (2" shaft) | ||||
| N/A | 4" Flange | AR | AR | |
| 91696 | 5" Flange | AR | AR |
