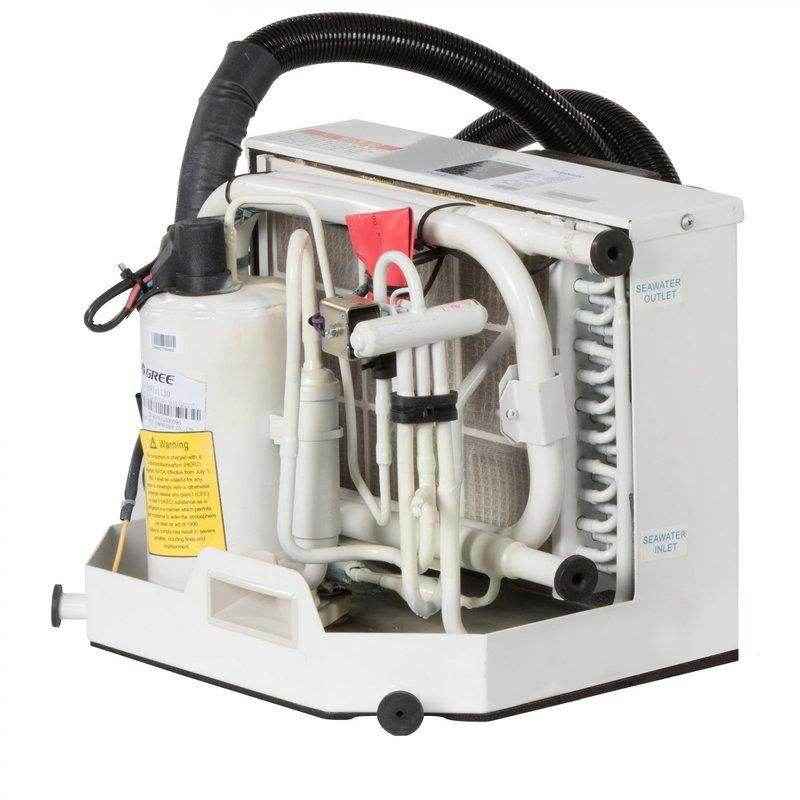

10,000 BTU FCF Platinum Air Conditioner, 230V | Webasto 5011397A

  • $1,954.52
    Unit price per

Only 7 left!

10,000 BTU FCF Platinum Air Conditioner, 230V | Webasto 5011397A

10,000 BTU 230V Feel Cool Fast(FCF) Platinum Air Conditioner


  • FCF Platinum Series Self-Contained Air Conditioner with Reverse Cycle Heat

  • 10,000 BTU/hr Cooling Capacity

  • 10,000 BTU/hr Heating Capacity

  • 230V Operation at 50/60Hz

  • Suggested Breaker 10A

  • Rated Current 4.2A at 50Hz, 3.7A at 60Hz

  • Starting Current 17.5A at 50Hz, 16.2A at 60Hz

  • Comp. LRA 17A

  • Duct Ring 4 in.

  • Rotatable Blower

  • FCF Platinum Models are programmed with additional fan speeds for improved comfort and noise reduction

  • Platinum programming automatically returns the fan speed to an ultra low speed when compressor shuts off

  • No Minimum run time for compressor. Compressor shuts off as soon as set point is reached.

  • Return Air Grille must be a minimum of 100 sq. in.

  • Minimum Seawater flow at the AC unit is 1.6GPM

  • 500GPH Continuous Duty Pump Suggested(sold separately)

  • Seawater Inlet/Outlet .75 in. O.D.

  • Drain Pan Outlet .625 in. O.D.

  • Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately)

  • AC unit dimensions(per manual*): 12.2 in.High(B*) X 14.96 in.Wide(A*) X 16.06 in.Deep(C*)

  • Electric Box dimensions(per manual) : 12.68 in. X 12.76 in. 3.28 in.

  • R410A Refrigerant

  • Quiet operation with more power than other self-contained A/C systems on the market today

  • Compressor has been carefully mounted to greatly reduce unwanted vibration and noises

  • Epoxy painted stainless drain pan

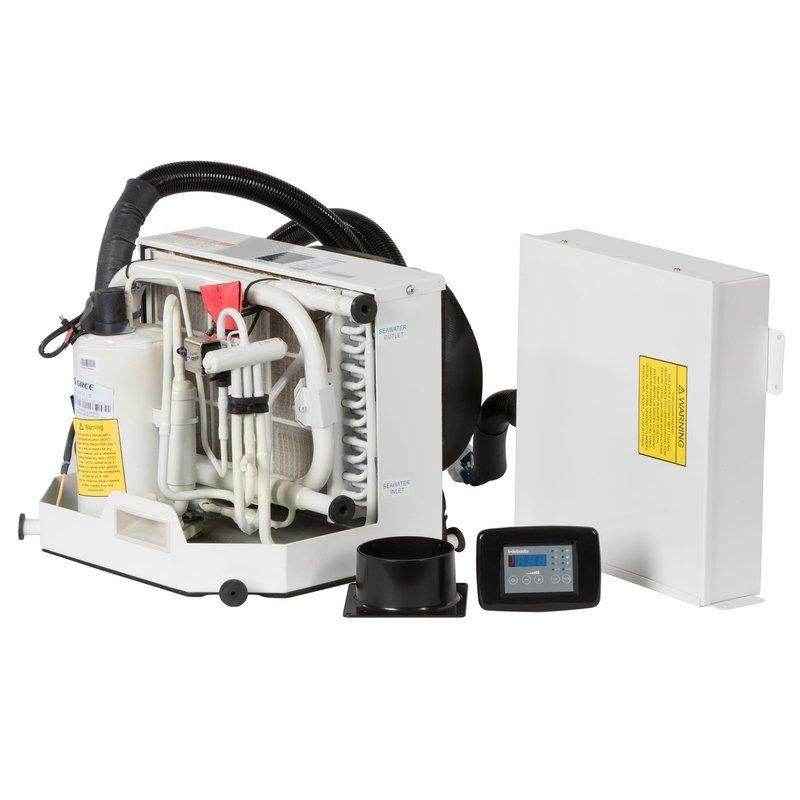

  • Digital display with control panel and cable are included

  • Optional wireless FCF Remote Control is sold separately(5012610A)

  • Backed by a limited 2-year warranty on parts and labor
