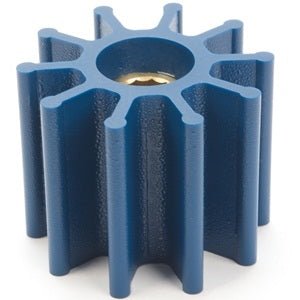

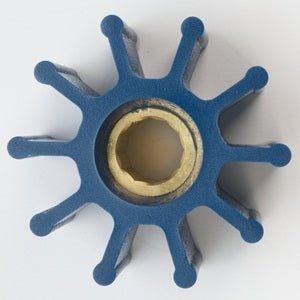

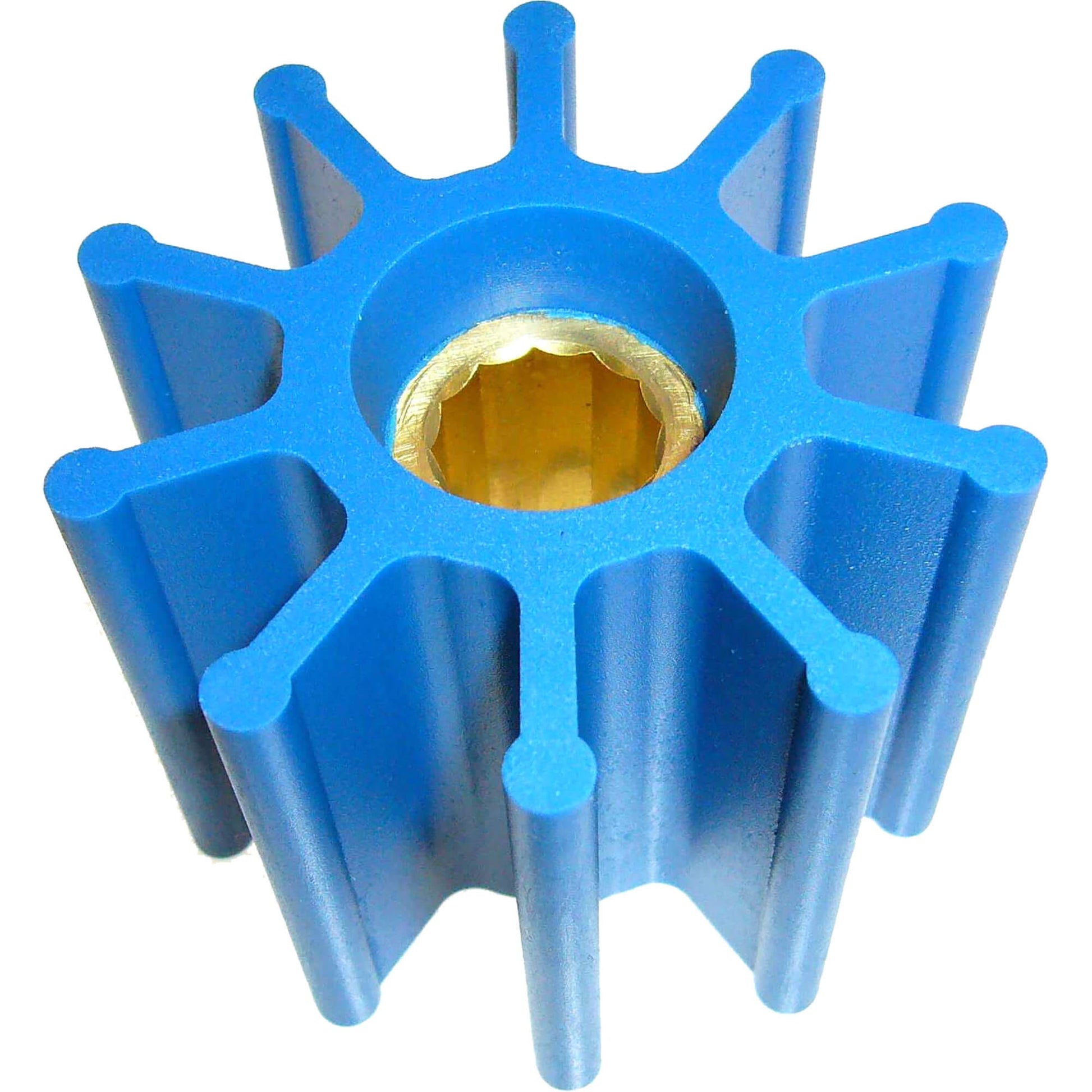

Globe 110 Blue Run-Dry Impeller | 01-12-1140 | Brandonite | 12-Pt Spline | 10-Blade High-Flow
The Globe #01-12-1140 is the 110 Blue run-dry impeller manufactured from Globe's Brandonite compound — a high-strength, self-lubricating elastomeric material guaranteed to run dry for 15 minutes without damage. The 110 Blue uses a 12-point spline drive hub with 10 blades, making it Globe's higher-blade-count 12-pt spline Brandonite impeller for raw water cooling pump applications requiring greater flow per revolution than the 8-blade 100 Blue. Confirm cross-references and specifications against your pump's parts diagram before ordering — contact us at MacombMarineParts.com with your pump model and OEM part number for fitment confirmation. Delivers up to 3x the service life of standard rubber, nitrile, or neoprene impellers. Water applications only.
Part Details:
- Part Number: 01-12-1140 (Globe)
- SKU: GLOBE-01-12-1140
- Impeller Designation: 110 Blue
- Manufacturer: Globe
- Type: Run-Dry Flexible Impeller — Brandonite Compound
- Drive Type: 12-point spline
- Blades: 10
- Liquid: Water only
- Confirm fitment by OEM part number cross-reference before ordering — contact us with your pump model for full specification details
- Condition: New
Additional Information
110 Blue vs. 100 Blue — 12-Pt Spline Family:
Both the 110 Blue (01-12-1140) and the 100 Blue (01-12-1060) use a 12-point spline drive, but differ in blade count:
- Globe 100 Blue (01-12-1060) — 8 blades, 2-9/16" OD × 2" wide; replaces Caterpillar, Cummins, Ford Lehman, Jabsco, Johnson Pump, Oberdorfer, PCM, Volvo — see the Globe 100 Blue (01-12-1060)
- Globe 110 Blue (01-12-1140) — 10 blades, 12-pt spline; higher blade count for pump applications requiring greater volumetric flow per revolution; confirm pump-specific fitment before ordering
The additional blades on the 110 Blue deliver more fluid per shaft revolution compared to the 100 Blue, making it appropriate for higher-flow pump configurations. Always confirm the correct impeller by OEM cross-reference rather than selecting based on blade count alone.
12-Point Spline Drive — Confirm Before Ordering:
The 110 Blue uses a 12-point internal spline hub. Confirm your pump shaft has matching 12-point external splines before ordering. Do not attempt to install a spline-drive impeller on a keyed, pin-drive, or single-flat pump shaft — it will not seat or transfer torque correctly.
Brandonite Run-Dry Technology:
Globe's Brandonite compound is self-lubricating, giving the 110 Blue its 15-minute guaranteed run-dry rating. Standard rubber and neoprene impellers fail from friction heat within 15–30 seconds of running dry. Key advantages:
- 15-minute guaranteed run-dry rating
- Up to 3x service life vs. rubber/nitrile/neoprene under normal wet operation
- Post-dry-run serviceability — inspect after a dry-run event; if undamaged, can return to service without mandatory replacement
For other Globe Brandonite run-dry impellers, also see:
- Globe 100 Blue (01-12-1060) — 12-pt spline, 8-blade, 2-9/16" OD × 2" wide; replaces Caterpillar, Cummins, Jabsco, Volvo
- Globe 331M (01-12-1290) — pin drive, 6-blade, 2" OD, 12mm shaft
- Globe 025 Blue (01-12-0965) — single flat, 6-blade, 2" OD, 5/16" shaft; replaces Jabsco, Raritan CH13
- Globe 6541 Blue (01-12-1830) — pin drive, 6-blade, 2" OD, 1/2" shaft; replaces Volvo Penta, MerCruiser, Jabsco
- Globe 418 Blue (01-12-1300) — keyed shaft, large-format diesel cooling applications
Frequently Asked Questions
1. How do I confirm this impeller fits my pump?
Contact us at MacombMarineParts.com with your pump manufacturer, pump model number, and the OEM impeller part number from your pump's parts diagram. We'll cross-reference to confirm whether the Globe 01-12-1140 is the correct replacement for your specific application before you order.
2. What is the difference between the 110 Blue and the 100 Blue?
Both use a 12-point spline drive hub. The 100 Blue (01-12-1060) has 8 blades and a confirmed 2-9/16" OD × 2" width with documented cross-references to Caterpillar, Cummins, Ford Lehman, and others. The 110 Blue (01-12-1140) has 10 blades and is intended for pump applications requiring higher volumetric flow per revolution. Confirm the correct impeller for your pump by OEM part number cross-reference, not by blade count alone.
3. Can a Brandonite impeller be returned to service after a dry-run event?
Yes — inspect the impeller after a dry-run event within the 15-minute rating for vane deformation, cracking, or hub separation. If it passes visual inspection and vanes have returned to their original shape, it can be returned to service. Standard rubber impellers must always be replaced after any dry-run event regardless of apparent condition.
