1112 Blue Run-Dry Impeller | Globe 01-12-1700

Globe 1112 Blue Run-Dry Impeller | 01-12-1700 | Brandonite | Pin Drive | Volvo Penta Onan Westerbeke Jabsco

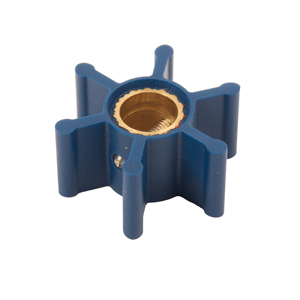

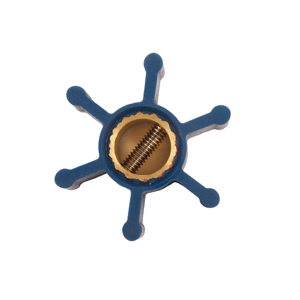

The Globe #01-12-1700 is the 1112 Blue run-dry impeller manufactured from Globe's Brandonite compound — a high-strength, self-lubricating elastomeric material guaranteed to run dry for 15 minutes without damage. The 1112 Blue is a compact, 6-blade pin drive impeller with a 1-9/16" OD and 12mm shaft, covering Volvo Penta, Onan marine generator, Westerbeke, Universal, Vetus, Jabsco, and Johnson Pump raw water cooling applications. Includes matching gaskets and/or O-rings. Delivers up to 3x the service life of standard rubber, nitrile, or neoprene impellers. Water applications only.

Part Details:

• Part Number: 01-12-1700 (Globe)
• SKU: GLOBE-01-12-1700
• Impeller Designation: 1112 Blue
• Manufacturer: Globe
• Type: Run-Dry Flexible Impeller — Brandonite Compound
• Drive Type: Pin drive
• Core: Brass
• Blades: 6
• Outer Diameter: 1-9/16 in. / 40 mm
• Width: 3/4 in. / 19 mm
• Shaft Diameter: 0.47 in. / 12 mm
• Silhouette: B
• Liquid: Water only

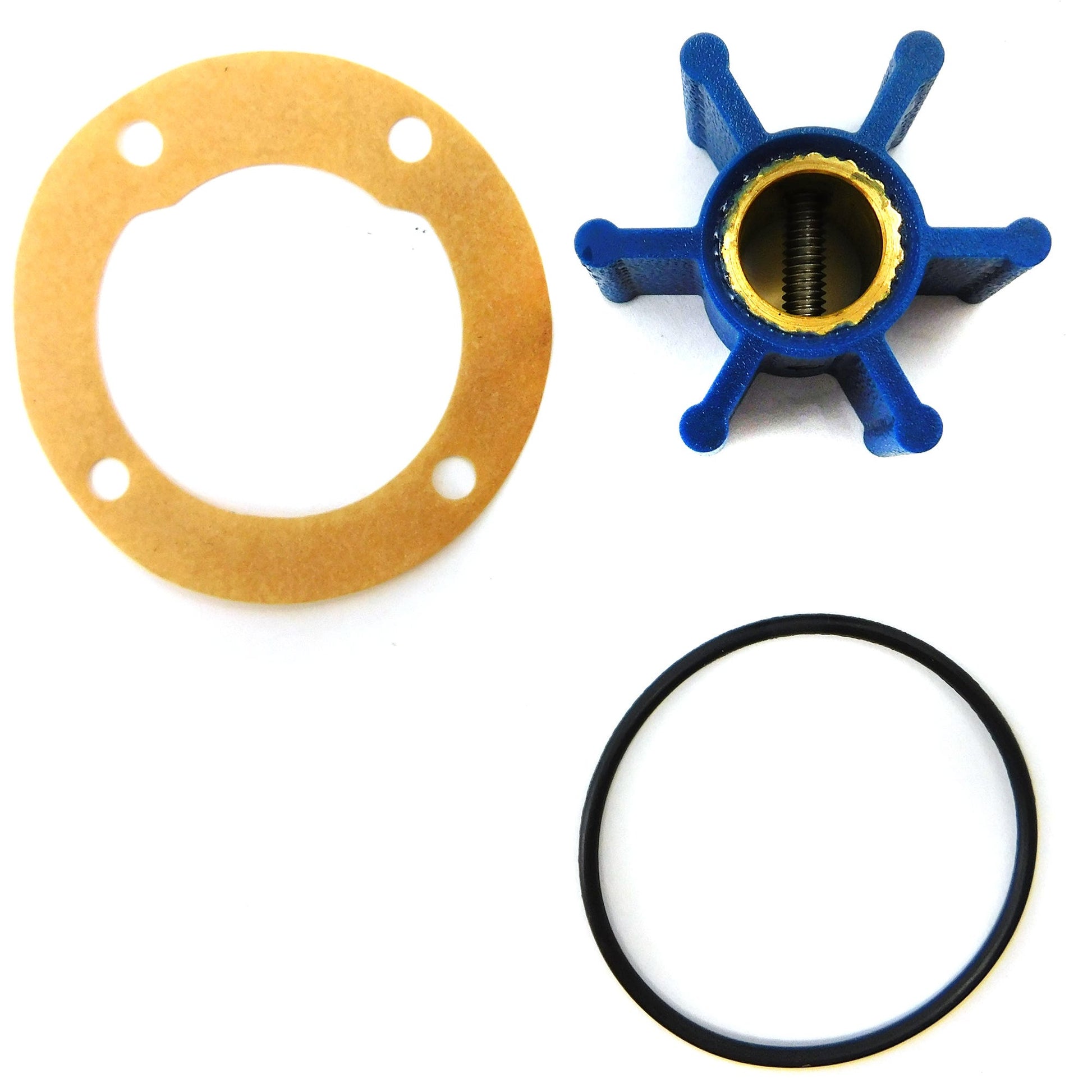

• Includes matching gaskets and/or O-rings
• Condition: New

Cross-Reference — Replaces:

• Ancor: J050021
• CEF: 500121
• Jabsco: 22405-0001
• Johnson Pump: 09-808B, 09-808B-1, 808B
• Onan: 132-0310
• Sierra Marine: 18-3076
• Universal: 32620
• Vetus: IMP 00601
• Volvo Penta: 833995, 875583, 3586496
• Westerbeke: 32620

Additional Information

1112 Blue Applications — Compact Pin Drive for Volvo, Onan, Westerbeke, Vetus:

At 1-9/16" OD, the 1112 Blue is a smaller-format impeller than the 331M (2" OD) or 6541 Blue (2" OD), serving a distinct set of pump housings used across Volvo Penta, Onan marine gensets, Westerbeke/Universal diesel engines, Vetus, and Jabsco pump applications. Key application notes:

• Volvo Penta — three Volvo Penta part numbers (833995, 875583, 3586496) confirm the 1112 Blue fits multiple Volvo Penta raw water pump configurations; verify against your specific Volvo engine model using the part number from your engine's raw water pump
• Onan 132-0310 — Onan marine generator application; note this is a different Onan part number from the Onan 132-0316 (which is replaced by the Globe 815 Blue, 01-12-1540); confirm your generator's impeller part number before ordering
• Westerbeke/Universal 32620 — Universal Marine is a Westerbeke brand; Westerbeke 32620 and Universal 32620 are the same part number serving the same engine family
• Vetus IMP 00601 — compact Vetus raw water pump application; the 1112 Blue is the Brandonite run-dry upgrade over the standard Vetus impeller in this housing size
• Johnson Pump 09-808B series — three Johnson Pump part numbers (808B, 09-808B, 09-808B-1) are successive references for the same pump model; any of these confirm the 1112 Blue is the correct replacement

1112 Blue vs. 331M — Both Pin Drive, Different Size:

The 1112 Blue and 331M are both 6-blade, 12mm shaft, pin drive Brandonite impellers but are NOT interchangeable — the outer diameters are different:

• Globe 331M (01-12-1290) — pin drive, 6-blade, 2" OD × 7/8" wide, 12mm shaft; replaces Jabsco, Yanmar, Westerbeke, Vetus, Kubota, Mitsubishi — see the Globe 331M (01-12-1290)
• Globe 1112 Blue (01-12-1700) — pin drive, 6-blade, 1-9/16" OD × 3/4" wide, 12mm shaft; replaces Volvo Penta, Onan, Westerbeke/Universal, Vetus, Jabsco, Johnson Pump

The smaller OD of the 1112 Blue serves a distinct set of pump housings. Always confirm by OEM cross-reference rather than by drive type or blade count alone.

Onan Generator Impeller — 132-0310 vs. 132-0316:

Onan uses two different raw water impeller part numbers across its marine generator lineup. The 1112 Blue replaces Onan 132-0310; the Globe 815 Blue (01-12-1540) replaces Onan 132-0316. These are different impellers for different generator pump configurations — verify your genset's impeller part number from your Onan service manual or parts diagram before ordering. Do not substitute one for the other based on brand name alone.

Brandonite Run-Dry Technology:

• 15-minute guaranteed run-dry rating — standard impellers fail in under 30 seconds dry
• Up to 3x service life vs. rubber/nitrile/neoprene under normal wet operation
• Post-dry-run serviceability — inspect after a dry-run event; if undamaged, can return to service without mandatory replacement

For other Globe Brandonite run-dry impellers, also see:

• Globe 331M (01-12-1290) — pin drive, 6-blade, 2" OD, 12mm shaft; replaces Jabsco, Yanmar, Westerbeke, Vetus; no gaskets
• Globe 6541 Blue (01-12-1830) — pin drive, 6-blade, 2" OD, 1/2" shaft; replaces Volvo Penta (7 nos.), MerCruiser, Jabsco, Sierra 18-3080
• Globe 815 Blue (01-12-1540) — single flat, 6-blade, 2" OD, 1/2" shaft; replaces Onan 132-0316, Westerbeke; no gaskets
• Globe 100 Blue (01-12-1060) — 12-pt spline, 8-blade, 2-9/16" OD; replaces Caterpillar, Cummins, Jabsco, Volvo; includes gaskets
• Globe 025 Blue (01-12-0965) — single flat, 6-blade, 2" OD, 5/16" shaft; replaces Jabsco, Raritan CH13; includes gaskets

Frequently Asked Questions

1. How do I confirm this impeller fits my Volvo Penta engine?
Cross-reference against Volvo Penta 833995, 875583, or 3586496 in Volvo Penta's parts documentation for your specific engine model and serial number. Volvo Penta raw water pumps vary by engine family — confirm the correct part number using your engine's model designation before ordering. Contact us at MacombMarineParts.com with your Volvo Penta engine model and serial number for fitment confirmation.

2. Does this impeller fit my Onan marine generator?
The Globe 01-12-1700 replaces Onan 132-0310. Confirm your Onan genset uses 132-0310 — not 132-0316 — by checking your generator's service manual or parts diagram. If your genset uses Onan 132-0316, see the Globe 815 Blue (01-12-1540) instead.

3. Does this impeller include gaskets and O-rings?
Yes — the Globe 01-12-1700 includes matching gaskets and/or O-rings for the pump cover. Replace all included sealing components at each service — do not reuse old gaskets or O-rings when reinstalling the pump cover.

4. What is the difference between Westerbeke 32620 and Universal 32620?
Universal Marine is a brand owned by Westerbeke; Westerbeke 32620 and Universal 32620 are the same part number referring to the same impeller. If your engine is branded Universal or Westerbeke and the impeller part number is 32620, the Globe 1112 Blue (01-12-1700) is the correct Brandonite replacement.

5. What happens if vanes are missing when I remove the old impeller?
If vanes are broken or missing on removal, do not install the replacement impeller until you have inspected and flushed the entire downstream raw water circuit — heat exchanger, thermostat housing, and exhaust elbow — for debris. Broken vane fragments lodged downstream will cause repeat overheating and pump failure after the new impeller is installed.
