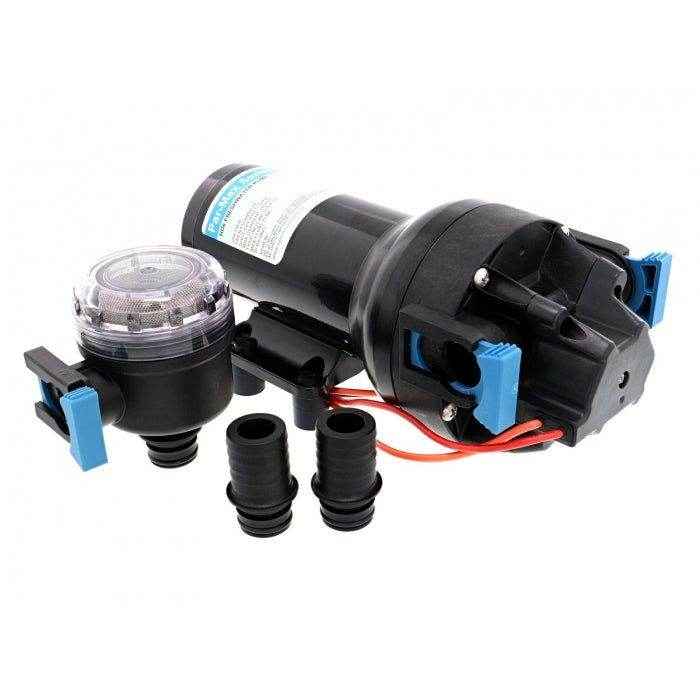

12V Par-Max HD6 Freshwater Pressure Pump 40psi | Jabsco P601J-215S-3A
12V Par-Max HD6 Freshwater Pressure Pump 40psi | Jabsco P601J-215S-3A
Jabsco
Out of stock
Couldn't load pickup availability
This 40 PSI 12 volt Par-Max HD6 fresh water delivery pump features a heavy duty motor and cast aluminum lower housings which allow for long-life, even at high pressures. This pump also includes an integrated bypass module which reduces cycling and provides a smoother flow.
12V Par-Max HD6 Freshwater Pressure Pump 40 PSI | Jabsco P601J-215S-3A
- Par-Max HD6 Freshwater Delivery Pump
- 12 Volt DC operation
- 6 Gallon Per Minute Open Flow Rate
- 40 PSI Shut-off pressure (2.8 BAR)
- 15 Max Current Amps
- 25 Amp Fuse Required
- Self-priming operation (7ft when dry)
- Runs dry without damage
- Includes a bypass module which reduces cycling and provides the user with an even flow
- two (2) 3/4 inch hose Barbs included (Quick Connect to Straight Hose Barb)
- 90 degree 40 Mesh Strainer Included
- Ignition Protected
- Certifications: CE, ISO8846, RCM
- IPX6 rated
- 10.2 In. Length x 5.1 In. Width x 4.7 inch Height
- 2 In. center to center mounting length
- 3.6 In. center to center mounting width
- Mounting feet with soft rubber mounts are designed to reduce and absorb noise
- See Product Attachment for additional details
