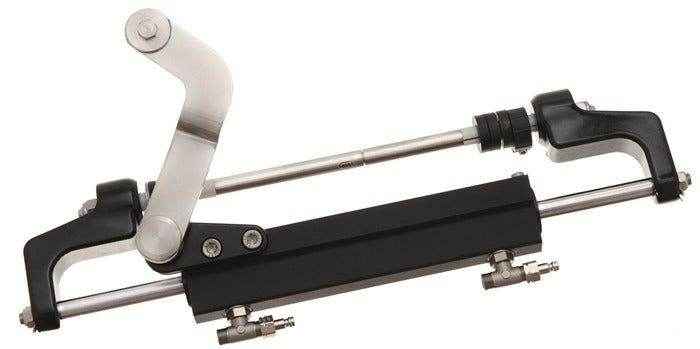

175Hp or Less Front Mount Cylinder 3 | Uflex UC95OBF-3

175Hp or Less Front Mount Cylinder 3 | Uflex UC95OBF-3

Uflex 175Hp or Less Front Mount Cylinder 3 | Uflex UC95OBF-3

175Hp or Less Front Mount Cylinder 3

UC95OBF-3 - Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa

Adjustable boss style fittings for easy installation High resistance stainless steel connection bolt (ULTRABOLT) Intended for single engine applications of 175 HP and under, the UC95 OBF-3 cylinder is compatible with competing helms, hoses and oil, and is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies. Constructed of top grade materials this cylinder is simple to install and fits almost every two and four stroke outboard engine in the market. See the application guide next page to ensure compatibility with your engine.

The UC95OBF-3 is recommended for use with the UP20 series helm and pre-made hose kits (Kit OB and Kit OB-BHBR). INNOVATIVE DESIGN (PATENTED):

Split and pinned mounting rod for easy installation and bushings to prevent friction with engine tilt tube. Depending on the applications on the outboard engines, the UC95-OBF cylinder is available in 2 versions.

Specifications for Front Mount Cylinder 3 | Uflex UC95OBF-3:

• Replaces Uflex UC94OBF-3
• Easily replaceable heads (seal kit).
• Rated 175hp (single engine).
• Increased rigidity vs UC94 : link arm directly installed on the cylinder body.
• WARNING : The UC95-OBF front mount cylinder is re-commended for use with outboard engi-nes 175 hp total and less and where the boat speed does not exceed 55 mph (48 knots).
• Volume : 94 cc - 5.7 cu. in
• Output force : 278 kg - 613 lbs
• Internal diameter : 30 mm - 1.18"
• Stroke : 186 mm - 7.3"
• 3/8" (9.5mm) Fittings : For high pressure flex hose
• Bleed fittings : DNS quick connect
