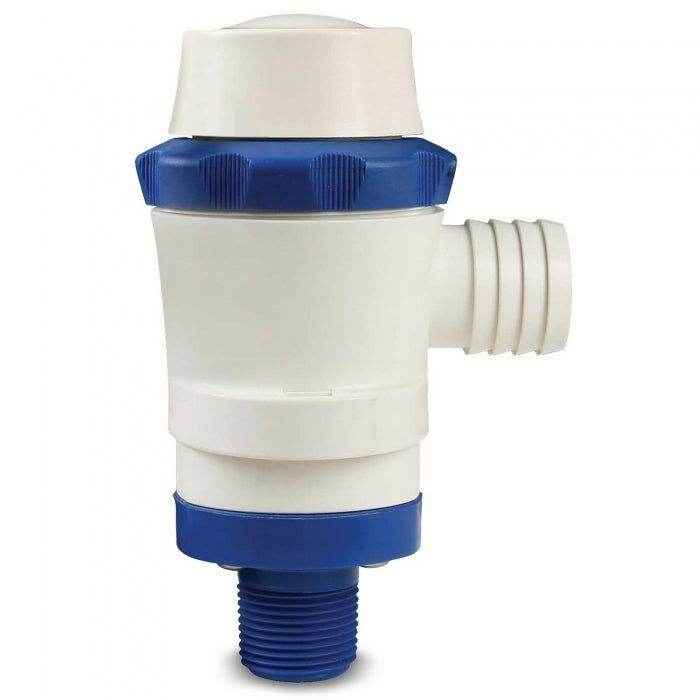

Shurflo 357-106-10 — Piranha 1100 GPH Ballast Pump, 12V DC
The Shurflo 357-106-10 is a 12V DC ballast pump rated at 1100 GPH, designed for ballast tank fill and drain applications in wakeboard boats, ski boats, and other ballast-equipped vessels. It replaces the earlier 357-106-00 and shares the same motor cartridge platform (94-620-00) as other Piranha ballast pumps in this family, simplifying parts stocking onboard.
Part Specifications
- Part Number: 357-106-10
- Flow Rate: 1100 GPH
- Voltage: 12V DC
- Fuse Recommendation: 6 Amp
- Wire Leads: 16 AWG
- Inlet: 3/4" Male NPT
- Outlet: 3/4" Barbed
- Replaces: 357-106-00
- Replacement Motor Cartridge: 94-620-00
Serviceability Note
If the pump loses flow but the housing is intact, the motor cartridge (Shurflo 94-620-00) can be replaced separately rather than replacing the entire pump assembly. This is a common field repair for ballast pumps with high cycle counts.
Installation Notes
- Fuse the circuit at 6 amps at the power source
- Use 16 AWG wire minimum; keep run lengths short to minimize voltage drop
- Inlet is 3/4" Male NPT — use appropriate fittings and thread sealant
- Outlet is 3/4" barbed — secure hose with a stainless clamp
- Mount with inlet below waterline for self-priming performance; avoid dry-run conditions
- Verify polarity before connecting — reverse polarity will damage the motor
Additional Information
- Vendor: Shurflo
- SKU: SHUR-357-106-10
- Product Type: Ballast Pump
- Country of Origin: United States
- Weight: 2 lbs
- HS Code: 841290 (confirm — may be more accurately classified under 8413.70 or 8413.81 for centrifugal pumps)
Frequently Asked Questions
Q: Does this replace the Shurflo 357-106-00?
A: Yes. The 357-106-10 is the current production replacement for the earlier 357-106-00. It is a direct replacement using the same motor cartridge platform.
Q: What fuse size should I use?
A: Shurflo recommends a 6 amp fuse. Install it as close to the power source as practical.
Q: Can I replace just the motor without replacing the whole pump?
A: Yes. The Shurflo 94-620-00 motor cartridge is a service part for this pump. If the housing is undamaged and only the motor has failed, the cartridge can be replaced separately.
Q: What is the inlet and outlet size?
A: Inlet is 3/4" Male NPT. Outlet is 3/4" barbed. Use appropriate fittings and hose clamps for a secure, leak-free connection.
Q: Will this pump run dry without damage?
A: No. This pump should not be run dry. Mount with the inlet submerged or primed, and use a float switch or timer to prevent dry-run conditions.
