Baystar Outboard Hydraulic Steering Cylinder - Short Plate | Seastar HC4648-3

Baystar Outboard Hydraulic Steering Cylinder - Short Plate | Seastar HC4648-3

Dometic

$775.99 USD
$595.99 USD $775.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

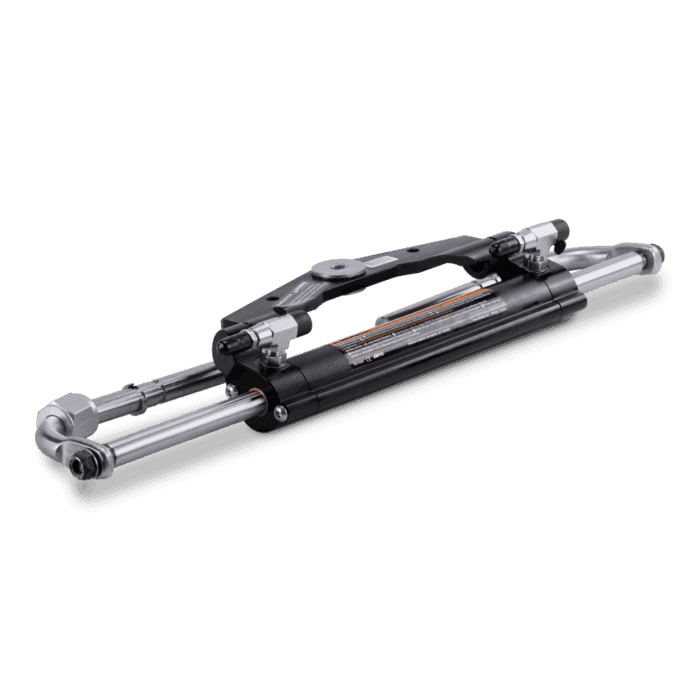

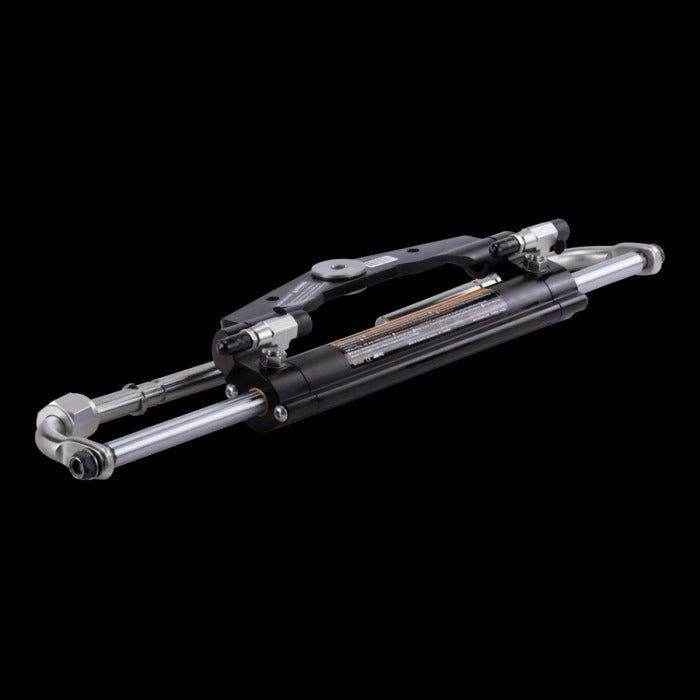

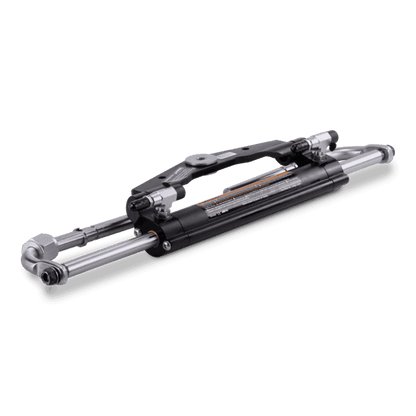

Baystar Outboard Hydraulic Steering Cylinder - Short Plate | Seastar HC4648-3

Baystar Outboard Hydraulic Steering Cylinder - Short Plate | HC4648-3

This hydraulic steering cylinder is designed for outboards up to 150 horsepower. It is also compact and balanced, fitting most splashwells and providing full engine movement.

  • Distributed by Dometic Marine, formerly Seastar Solutions and Teleflex Marine
  • 7.24 cubic inch displacement
  • 1000 psi maximum pressure rating
  • 150 maximum horsepower rating
  • 8-inch stroke length
  • Used with Mercury outboard engines from 1998 to date 40–60 HP 2 & 4 Stroke
  • Used with Johnson/Evinrude outboard engines from 1977-1990 65-150 HP 2 Stroke
  • Used with Yamaha 2000 to date 25-70 HP 4-stroke (Requires Spacer Kit H05090)
