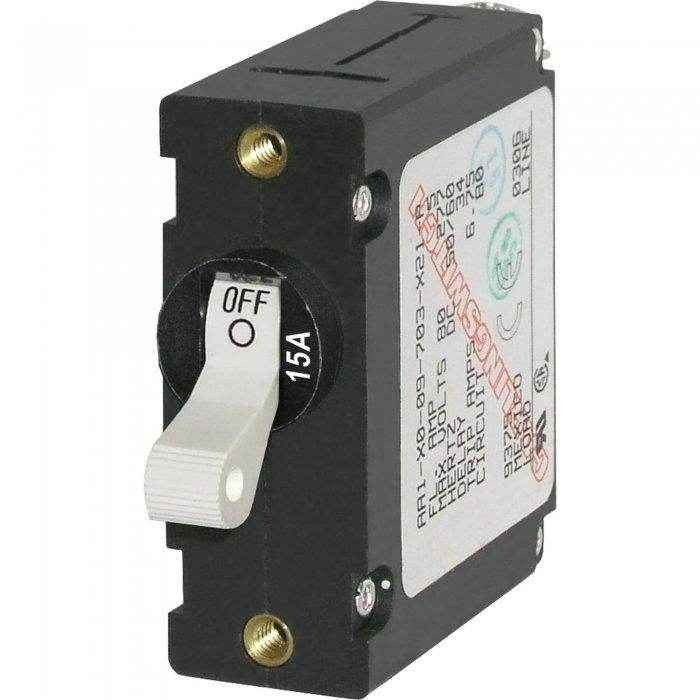

Blue Sea 15 Amp Ac/Dc Magnetic Circuit Breaker 7210

Blue Sea Systems 15 Amp Ac/Dc Magnetic Circuit Breaker 7210

White handle single pole circuit breaker with screw terminal connections is used for DC or AC branch circuit protection.

•
  15 Amp AC/DC Magnetic Circuit Breaker
•
  Single pole
•
  White handle
•
  The industry standard circuit breaker for Blue Sea Systems’ electrical panels
•
  Combines switching and circuit protection into a single device
•
  Trip Free design cannot be held ON during fault current condition
•
  Max Amperage 50 Amps
•
  Max Voltage 65 Volts DC, 277 Volts AC
•
  Circuit Breaker Type Magnetic Hydraulic - Trip Free
•
  Rated Switch Cycles 10,000 @ rated amperage and voltage
•
  Weight 0.34lb
•
  Mounting screw: #6-32
•
  Terminal screw: #10-32 SS w/external tooth lockwasher
•
  Meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada
