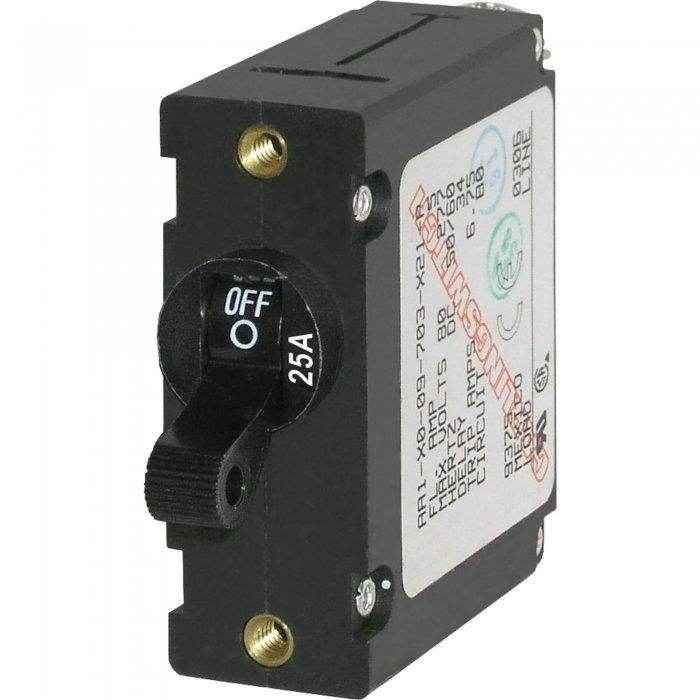

Blue Sea 25 Amp Ac/Dc Magnetic Circuit Breaker 7216

Blue Sea Systems 25 Amp Ac/Dc Magnetic Circuit Breaker 7216

Black handle single pole circuit breaker with screw terminal connections is used for DC or AC branch circuit protection.

•
  A-Series circuit breaker
•
  25 amps AC/DC rating
•
  Single pole
•
  Black toggle handle
•
  Combines switching and circuit protection into a single device
•
  Magnetic hydraulic trip-free design cannot be held ON during fault current condition
•
  The standard circuit breaker in Blue Sea Systems electrical panels
•
  65 volts DC maximum voltage
•
  250 volts AC maximum voltage
•
  #6-32 mounting screws included
•
  #10-32 terminal screws
•
  0.630 in. diameter panel hole size for toggle switch
•
  7500 amps interrupt capacity @ 65 volts DC
•
  3000 amps interrupt capacity @ 120 volts AC
•
  3000 amps interrupt capacity @ 250 volts AC
•
  Rated for 10,000 switching cycles @ rated amperage and voltage
•
  .750 in. width x 2 in. height x 1.64 in. depth
•
  Meets ABYC standards
•
  CE marked / TUV certified / CSA certified / UL 1077 recognized
•
  Replaces Ancor 551525
