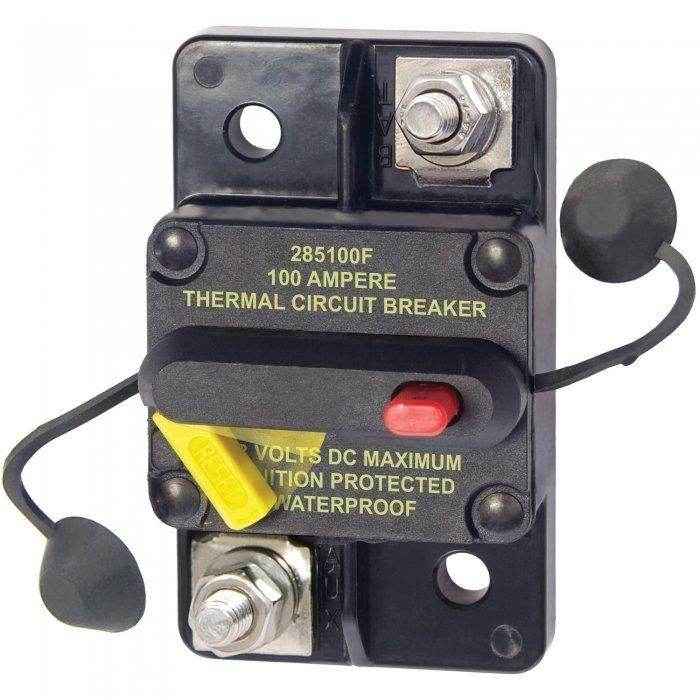

Blue Sea 285 Series 100 Amp Thermal Circuit Breaker 7187
Blue Sea Systems 285 Series 100 Amp Thermal Circuit Breaker 7187
Surface mount thermal circuit breaker combines switching & circuit protection into one device.
-
285 Series circuit breaker -
100 amps DC rating -
Bright yellow reset lever for visual identification of open circuit -
Ideal for main circuit protection of medium size battery banks -
Combines switching and circuit protection into a single device -
Trip-free design cannot be held ON during fault current condition -
Not to be used where high inrush currents are expected -
Type III class – switchable/manual reset -
48 volts DC maximum voltage -
3000 amps interrupt capacity @ 48 volts DC -
M6 terminal studs accept 1/4 in. ring terminals for heavy duty gauge wire -
Waterproof for use in areas that may experience water spray -
Recessed mounting holes for clean appearance -
Drop in replacement for 185 series circuit breakers -
1.895 in. width x 3.2 in. height x 1.24 in. depth -
SAE J1171 ignition protected – safe for installation aboard gasoline powered boats -
CE marked -
IP67 – protected against immersion up to 1 meter for 30 minutes -
Replaces P/N 7102
