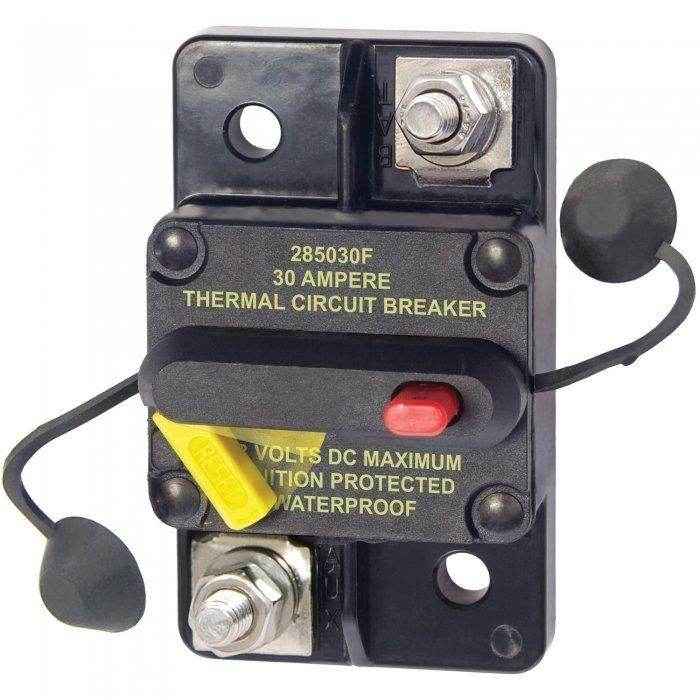

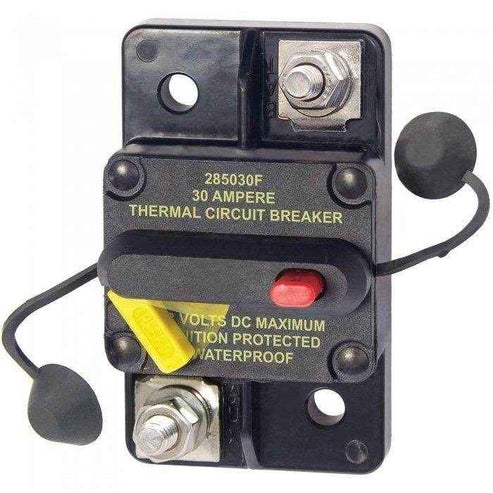

Blue Sea 285 Series 30 Amp Thermal Circuit Breaker 7181

Blue Sea Systems 285 Series 30 Amp Thermal Circuit Breaker 7181

Surface mount thermal circuit breaker combines switching & circuit protection into one device.

•
  Blue Sea 285 series surface mount circuit breaker
•
  30 amps DC rating
•
  Bright yellow reset lever for visual identification of open circuit
•
  Ideal for main circuit protection of medium size battery banks
•
  Combines switching and circuit protection into a single device
•
  Trip-free design cannot be held ON during fault current condition
•
  Not to be used where high inrush currents are expected
•
  Type III class – switchable/manual reset
•
  48 volts DC maximum voltage
•
  3000 amps interrupt capacity @ 48 volts DC
•
  M6 terminal studs accept 1/4 in. ring terminals for heavy duty gauge wire
•
  Waterproof for use in areas that may experience water spray
•
  Drop in replacement for 185 series circuit breakers
•
  1.895 in. width x 3.2 in. height x 1.24 in. depth
•
  SAE J1171 ignition protected – safe for installation aboard gasoline powered boats
•
  CE marked
•
  IP67 – protected against immersion up to 1 meter for 30 minutes
