Breaker Panel 4 Position Water Resistant | Blue Sea 8372
Breaker Panel 4 Position Water Resistant | Blue Sea 8372

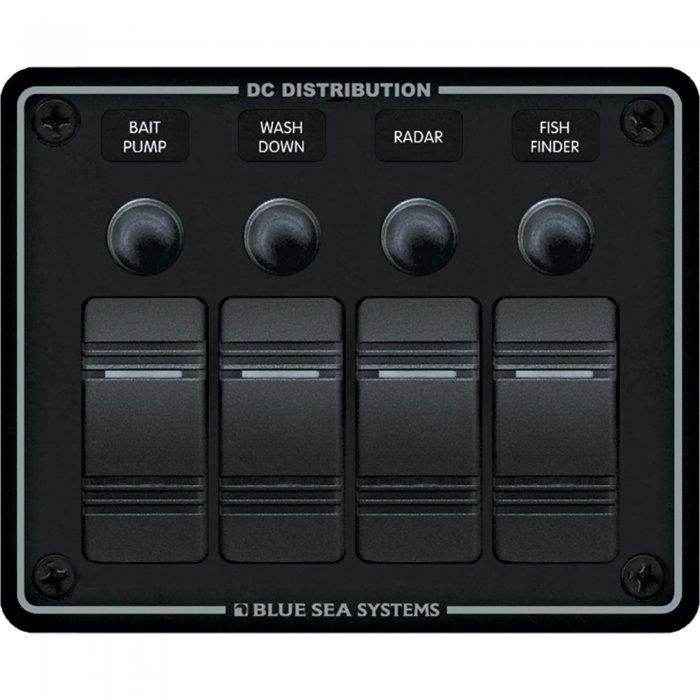

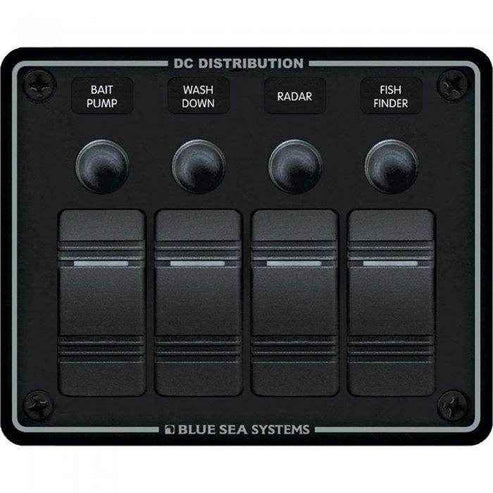

The Blue Sea 4 Position Water Resistant Breaker Panel 8372 is expertly designed for demanding marine environments such as flybridge and open cockpit installations. Constructed from robust 1/8-inch aluminum with a two-part polyurethane black finish and Mil-Spec chemical treatment, it offers exceptional corrosion resistance. This fully wired, ready-to-install panel features four push-button Contura circuit breakers with waterproof boots and integrated ON-indicating LEDs, ensuring clear status visibility even in wet conditions. The panel is rated for 12 or 24 volts DC systems, with each breaker rated at 20 amps (12V) or 15 amps (24V), and a cumulative panel rating of 45 amps, providing reliable circuit protection. Its IP66 rating guarantees resistance against dust and powerful water jets, making it suitable for ship decks, while ignition protection ensures safe use aboard gasoline-powered vessels. The panel includes countersunk mounting holes, a watertight gasket, and comes with a full set of 60 small common DC labels for easy circuit identification. Detailed installation instructions and a cutout template facilitate straightforward integration. This breaker panel combines durable construction, water resistance, and marine-grade safety certifications, making it a trusted choice for professionals seeking reliable circuit control in harsh marine conditions.
BLUE SEA SYSTEMS 4 Position Water Resistant Circuit Breaker Panel 8372
- 4 Position Water Resistant Circuit Breaker Panel (Horizontal)
- Designed for flybridge and open cockpit applications
- Water resistant
- Completely wired and ready to install
- Push button circuit breakers with waterproof boot
- Four installed ON-OFF Contura switches
- Countersunk mounting holes throughout
- Heavy 1/8 in. aluminum material
- Two-part polyurethane black finish
- Water resistant Contura switches
- ON indicating LEDs embedded in switch
- Includes set of 60 small common DC labels
- Height 4.25 in. and width 5.25 in.
- Watertight mounting gasket
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Detailed installation instructions and cutout template
- Water resistant panel labels are not backlightable
- Voltage 12 or 24 Volts DC
- Switch Rating:
- 20 Amperes @ 12 Volts DC
- 15 Amperes @ 24 Volts DC
- Switch LED Amperage Draw 18 Milliamperes each
- Fuse Holder Rating 20 Amps maximum
- Panel Cumulative Rating 45 Amps
- Circuit Breaker Rating 15 Amperes
- Rated IP66 - Use on Shipdecks
- Ignition protected - safe for installation aboard gasoline powered boats
