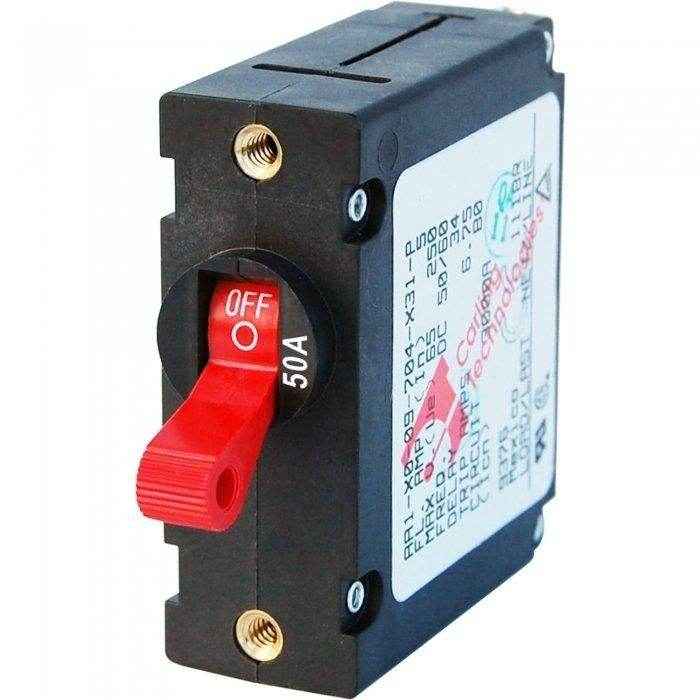

Blue Sea 50 Amp Ac/Dc Magnetic Circuit Breaker 7229

Blue Sea 50 Amp Ac/Dc Magnetic Circuit Breaker 7229

Blue Sea Systems

  • $18.52
    Unit price per
  • Save $4.54

Only 0 left!


Blue Sea Systems 50 Amp Ac/Dc Magnetic Circuit Breaker 7229

Red handle single pole circuit breaker with screw terminal connections is used for DC or AC branch circuit protection.


  • 50 Amp AC/DC Magnetic Circuit Breaker

  • Single pole

  • Red handle

  • The industry standard circuit breaker for Blue Sea Systems’ electrical panels

  • Combines switching and circuit protection into a single device

  • Trip Free design cannot be held ON during fault current condition

  • Max Amperage 50 Amps

  • Max Voltage 65 Volts DC, 277 Volts AC

  • Circuit Breaker Type Magnetic Hydraulic - Trip Free

  • Rated Switch Cycles 10,000 @ rated amperage and voltage

  • Weight 0.34lb

  • Mounting screw: #6-32

  • Terminal screw: #10-32 SS w/external tooth lockwasher

  • Meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada
