Blue Sea  50 Amp Ac/Dc Magnetic Circuit Breaker 7230

Blue Sea 50 Amp Ac/Dc Magnetic Circuit Breaker 7230

Blue Sea Systems

  • $18.52
    Unit price per
  • Save $4.54

Only 9 left!

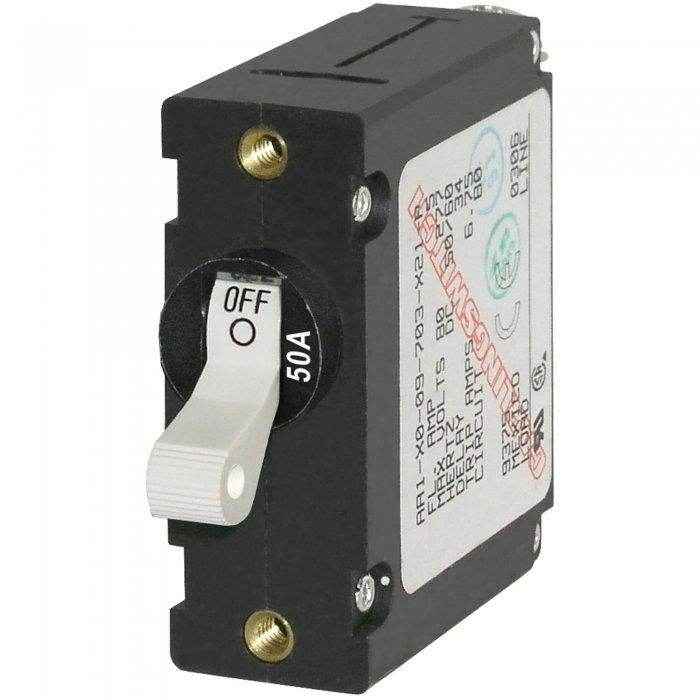

Blue Sea Systems 50 Amp Ac/Dc Magnetic Circuit Breaker 7230

White handle single pole circuit breaker with screw terminal connections is used for DC or AC branch circuit protection.


  • A-Series circuit breaker

  • 50 amps AC/DC rating

  • Single pole

  • White toggle handle

  • Combines switching and circuit protection into a single device

  • Magnetic hydraulic trip-free design cannot be held ON during fault current condition

  • The standard circuit breaker in Blue Sea Systems electrical panels

  • 65 volts DC maximum voltage

  • 250 volts AC maximum voltage

  • #6-32 mounting screws included

  • #10-32 terminal screws

  • 0.630 in. diameter panel hole size for toggle switch

  • 7500 amps interrupt capacity @ 65 volts DC

  • 3000 amps interrupt capacity @ 120 volts AC

  • 3000 amps interrupt capacity @ 250 volts AC

  • Rated for 10,000 switching cycles @ rated amperage and voltage

  • .750 in. width x 2 in. height x 1.64 in. depth

  • Meets ABYC standards

  • CE marked / TUV certified / CSA certified / UL 1077 recognized

  • Replaces Ancor 551750
