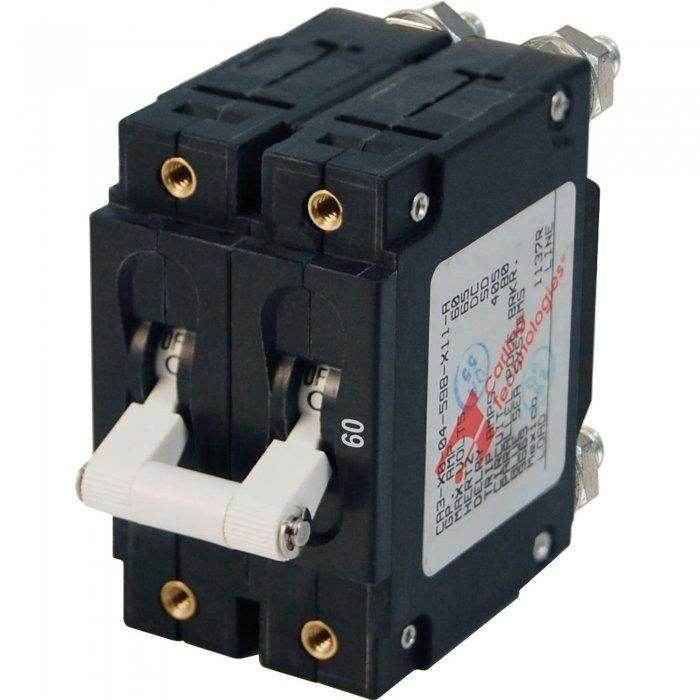

Blue Sea 60A C-Series Toggle Double Pole Circuit Breaker 7254

Blue Sea Systems 60 Amp C-Series Toggle Double Pole Circuit Breaker 7254

White handle double pole circuit breaker with 1/4-20 stud terminal connections is used for 120/240 volt AC main circuit protection to switch hot & neutral.

•
  C-Series circuit breaker
•
  60 amps AC rating
•
  Double pole
•
  White toggle handle
•
  Combines switching and circuit protection into a single device
•
  Magnetic hydraulic trip-free design cannot be held ON during fault current condition
•
  For AC main circuit protection to switch hot and neutral or to switch 2 hots in 120/240 volt AC branch applications
•
  Trips both poles if one pole trips
•
  80 volts DC maximum voltage
•
  240 volts AC maximum voltage
•
  #6-32 mounting screws included
•
  1/4-20 tin plated brass terminal studs
•
  5,000 amps interrupt capacity @ 65 volts DC
•
  5000 amps interrupt capacity @ 125/250 volts AC
•
  5000 amps interrupt capacity @ 250 volts AC
•
  Rated for 10,000 switching cycles @ rated amperage and voltage
•
  1.5 in. width x 2.5 in. height x 2.475 in. depth
•
  Meets ABYC standards
•
  UL 1077 recognized
