Blue Sea 8 Position A-Series Ac Main Circuit Breaker Panel 8406
Blue Sea 8 Position A-Series Ac Main Circuit Breaker Panel 8406
Blue Sea Systems
Out of stock
Couldn't load pickup availability

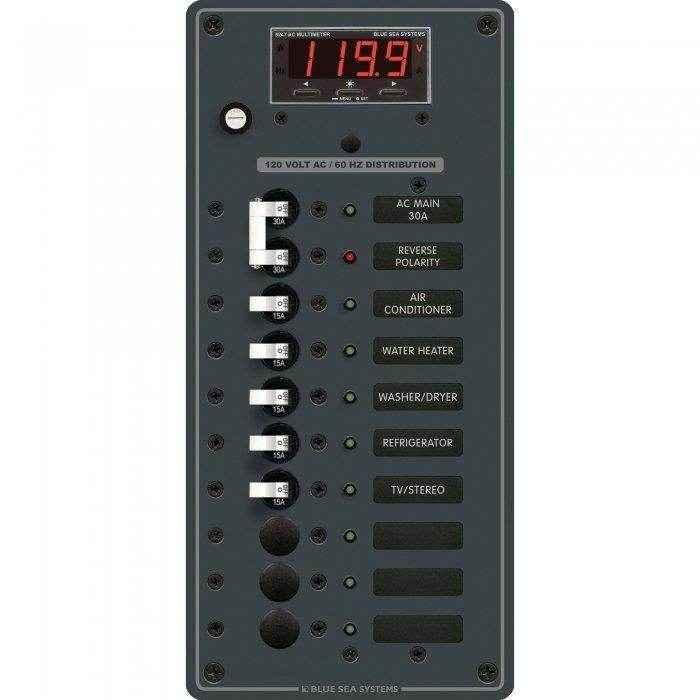

Blue Sea 8 Position A-Series Ac Main Circuit Breaker Panel 8406
Includes 30 amp double pole main breaker & (5) 15 amp breakers for distributing power from shore or generator power throughout the boat or RV.
- 120 volt AC main circuit breaker panel
- Vertical mounting orientation
- Traditional metal 10 position panel with digital multimeter
- Fitted with (1) 30 amp double pole main circuit breaker and (5) 15 amp white handle toggle circuit breakers
- 3 positions left blank for additional circuits or future expansion
- Installed digital multifunction meter P/N 8247 displays AC amperage, voltage, power consumption, frequency as well as programmable high and low voltage alarms
- Red LED visually displays a reverse polarity condition
- All hot, neutral, and safety ground buses are installed and fully prewired
- Includes set of 30 common backlightable AC labels
- Circuit label positions are backlit
- LEDs are installed in all circuits next to corresponding toggle breaker to visually indicate when a circuit is on
- 11.25 in. height x 5.25 in. width
