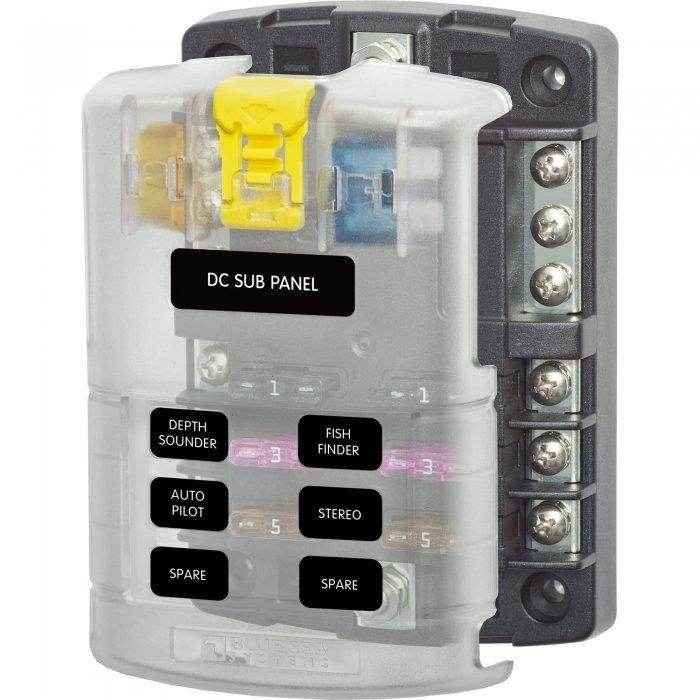

Blue Sea Ato/Atc 6 Circuit Fuse Block With Cover 5025

Blue Sea Ato/Atc 6 Circuit Fuse Block With Cover 5025

Blue Sea Systems

  • $49.99
    Unit price per
  • Save $14.11

Only 54 left!


Blue Sea Systems Ato/Atc 6 Circuit Fuse Block With Cover 5025

Blue Sea 5025 ST Blade Fuse Block with 6 Circuits and Cover


  • ATO/ATC 6 Circuit Fuse Block With Cover

  • #8-32 screw terminals

  • #10-32 negative bus stud

  • Clear insulating cover with label recess for small format labels

  • Cover insulates all conductive parts satisfying ABYC/USCG requirements

  • Tin-plated copper buses and fuse clips give 30 ampere rating per circuit

  • Accepts ATO and ATC fast acting blade type fuses

  • Base material reinforced polycarbonate

  • Cover material clear polycarbonate

  • ATO/ATC Fuses 1 to 40 amperes available

  • Maximum amperage per circuit 30 amperes

  • Maximum amperage per block 100 amperes

  • Maximum voltage 32 volts DC

  • Replaces Ancor 607122
