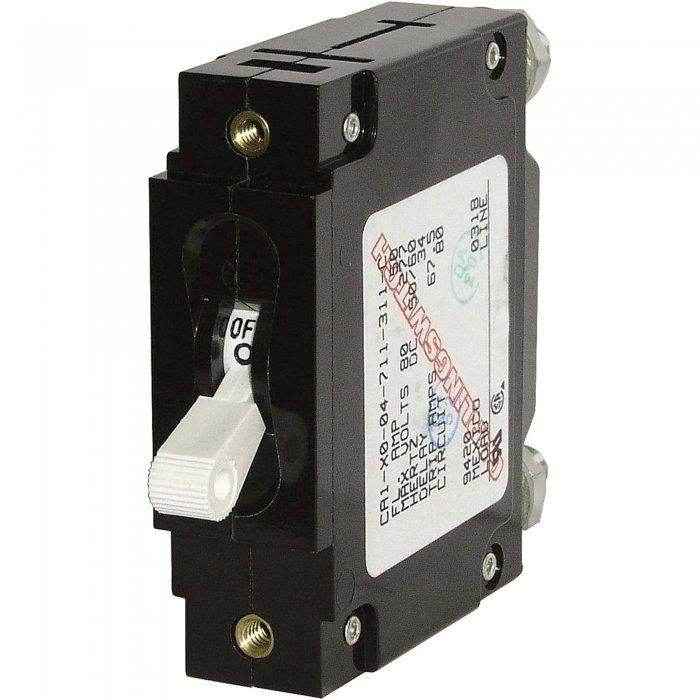

Blue Sea Circuit Breaker Ca1 80A White 7248

Blue Sea Systems Circuit Breaker Ca1 80A White 7248

White handle single pole circuit breaker with 1/4-20 stud terminal connections is used for DC or 120/240 volt AC circuit protection.

•
  C-Series circuit breaker
•
  80 amps AC/DC rating
•
  Single pole
•
  White toggle handle
•
  Combines switching and circuit protection into a single device
•
  Magnetic hydraulic trip-free design cannot be held ON during fault current condition
•
  Provides overcurrent protection for many DC applications including inverters, bow thrusters, and windlasses
•
  Suitable for main circuit protection of DC electrical systems or 120/240 volt AC circuit protection
•
  80 volts DC maximum voltage
•
  240 volts AC maximum voltage
•
  #6-32 mounting screws included
•
  1/4-20 tin plated brass terminal studs
•
  0.630 in. diameter panel hole size for toggle switch
•
  10,000 amps interrupt capacity @ 80 volts DC
•
  5000 amps interrupt capacity @ 125 volts AC
•
  5000 amps interrupt capacity @ 240 volts AC
•
  Rated for 10,000 switching cycles @ rated amperage and voltage
•
  .75 in. width x 2.5 in. height x 2.475 in. depth
•
  Meets ABYC standards
•
  UL 1077 recognized
