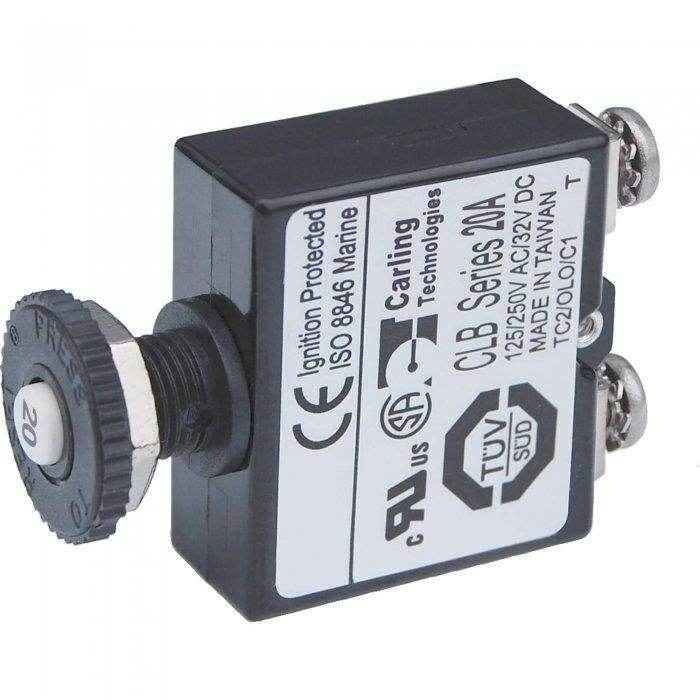

Blue Sea Circuit Breaker Push Button 20 Amp 2134

Blue Sea Systems Circuit Breaker Push Button 20 Amp 2134

Reset-only 20A DC circuit breaker is designed to protect low current circuits.

•
  Blue Sea push button circuit breaker
•
  Reset only CLB circuit breaker with push-to-reset operation
•
  (2) #8 screw terminals
•
  20 amp branch circuit breaker can also be used for 24-hour circuit protection
•
  Trip Free feature cannot be held ON during fault current condition
•
  Compact design
•
  Thermal trip type
•
  3000A interrupt capacity @ 14.7 volts DC
•
  2500A interrupt capacity @ 28 volts DC
•
  32 volts DC maximum voltage
•
  Panel mounts in .382 in. diameter hole
•
  Fits Blue Sea's WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels with adapter panel
•
  CE marked
•
  UL recognized – UL 1077
•
  Meets UL 1500 and ISO 8846 external ignition protection requirements
•
  Optional waterproof boot (sold separately) protects circuit breaker in wet environments
