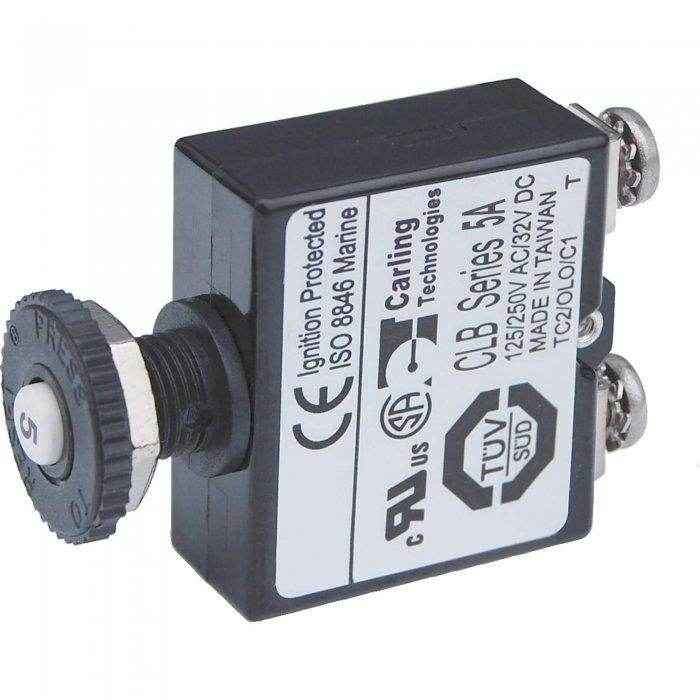

The Blue Sea 2130 Circuit Breaker Push Button 5 Amp is a compact, resettable circuit protection device engineered for marine and mobile electrical systems. Designed to protect sensitive circuits from overloads, it automatically trips at 5 amps to prevent damage and ensures reliable operation. Featuring a durable push-button reset, this breaker allows for quick restoration of power without the need for replacement fuses, enhancing both convenience and safety. Its robust construction provides resistance to harsh environmental conditions commonly encountered on boats and vehicles. Ideal for professionals requiring precise circuit protection, the Blue Sea 2130 delivers dependable performance and simplifies electrical system maintenance.

Blue Sea Systems Circuit Breaker Push Button 5 Amp 2130

Reset-only 5A DC circuit breaker is designed to protect low current circuits.

• Blue Sea push button circuit breaker
• Reset only CLB circuit breaker with push-to-reset operation
• (2) #8 screw terminals
• 5 amp branch circuit breaker can also be used for 24-hour circuit protection
• Trip Free feature cannot be held ON during fault current condition
• Compact design
• Thermal trip type
• 3000A interrupt capacity @ 14.7 volts DC
• 2500A interrupt capacity @ 28 volts DC
• 32 volts DC maximum voltage
• Panel mounts in .382 in. diameter hole
• Fits Blue Sea's WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels with adapter panel
• CE marked
• UL recognized – UL 1077
• Meets UL 1500 and ISO 8846 external ignition protection requirements
• Optional waterproof boot (sold separately) protects circuit breaker in wet environments
