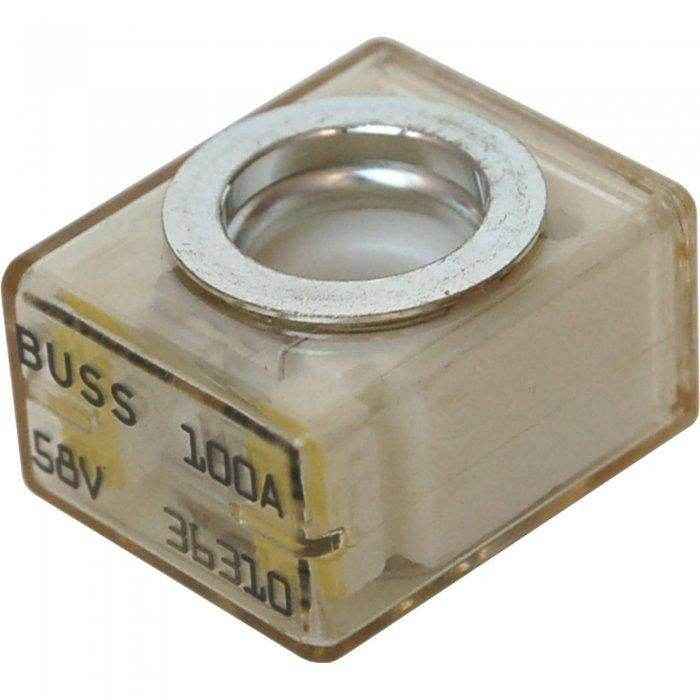

Blue Sea Fuse Terminal 100 Amp 5183
Blue Sea Fuse Terminal 100 Amp 5183
Blue Sea Systems
Low Stock: 10 left
Couldn't load pickup availability
Blue Sea Systems Fuse Terminal 100 Amp 5183
Compact MRBF fuse works with Blue Sea System's 5191 or 2151 terminal fuse block.
-
100 amp marine rated battery fuse -
Requires the use of P/N 5191 or 2151 terminal fuse blocks -
Do not mount fuse directly to the battery terminal without fuse block -
Interrupt rating satisfies ABYC requirements for DC Main circuit protection of large battery banks -
10,000 amps @ 14 volts DC interrupt capacity -
5,000 amps @ 32 volts DC interrupt capacity -
2,000 amps @ 58 volts DC interrupt capacity -
58 volts DC maximum operating voltage -
M8 (5/16 in.) fuse hole opening -
SAE J1171 ignition protected – safe for use aboard gasoline powered boats -
Viewing window allows for visible indication of blown fuse -
Rated IP66 – able to withstand heavy seas
