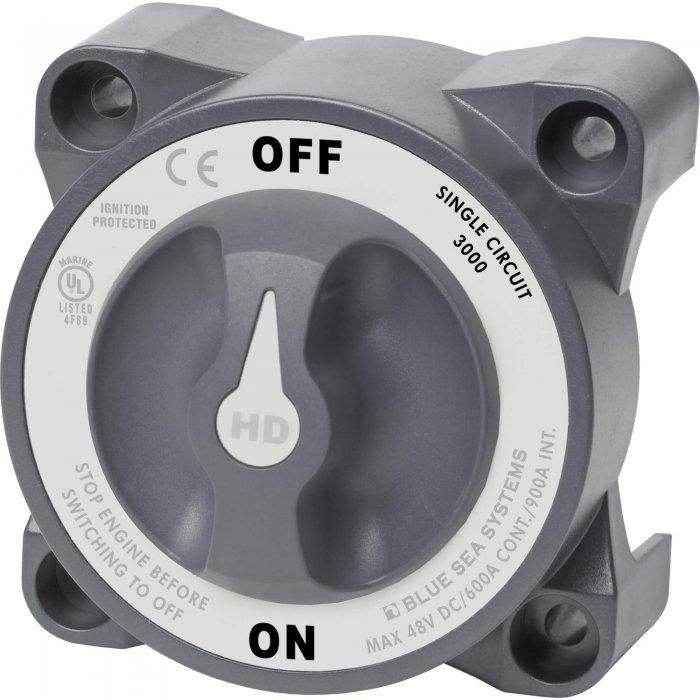

Blue Sea HD Battery Switch Single Circuit On-Off 3000

Blue Sea Systems Heavy Duty Battery Switch Single Circuit On-Off 3000

•
  HD-Series Heavy Duty Single Circuit On-Off Battery Switch
•
  Switches a single battery to a single load group
•
  Meets American Boat and Yacht Council (ABYC) requirements for battery switches
•
  Ignition protected?safe for installation aboard gasoline powered boats
•
  Case design allows surface or rear panel mounting
•
  Accepts two 4/0 AWG (95mm?) battery cables
•
  Cranking rating: 10 sec. 2 750A
•
  Cranking rating: 1 min. 1 325A
•
  Intermittent rating: 5 min.900A
•
  Continuous rating 600A
•
  Maximum voltage rating 32V DC
•
  Terminal stud size 1/2 in. (M12)
•
  Terminal stud torque 220 in.-lbs. (24.86 N?m) max.
•
  Mounting holes accept 1/4 in. (M6) screw
•
  Cable size to meet ratings 4/0 AWG (95mm?)
•
  Cable quantity to meet ratings two cables
•
  Cable clearance for 4/0 AWG cables 1.10 in. (27.9mm)
