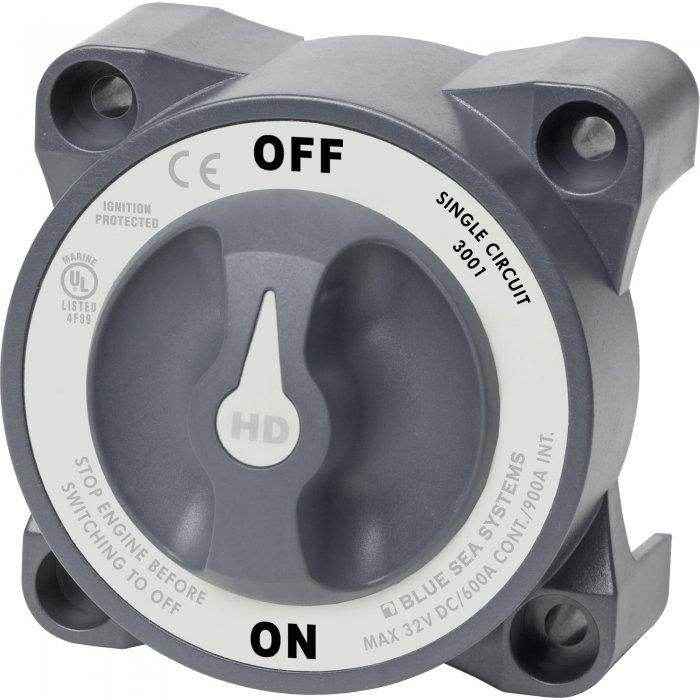

The Blue Sea HD-Series Single Circuit On-Off Battery Switch 3001 is a heavy-duty solution designed to manage a single battery to a single load group efficiently. Featuring an Alternator Field Disconnect (AFD), it safeguards your electrical system and meets stringent American Boat and Yacht Council (ABYC) standards, making it suitable for gasoline-powered boats. Its ignition-protected design ensures safe operation, while the rugged case supports both surface and rear panel mounting options. This switch accommodates two 4/0 AWG (95mm²) battery cables and offers robust performance with a 2,750A cranking rating for 10 seconds and 1,325A for 1 minute, providing reliable power control in demanding marine environments.
Blue Sea HD-Series Single Circuit On-Off Battery Switch 3001
- HD-Series Heavy Duty Single Circuit On-Off Battery Switch with AFD
- Alternator Field Disconnect
- Single Circuit ON-OFF
- Switches a single battery to a single load group
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected?safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm?) battery cables
- Cranking rating: 10 sec. 2 750A
- Cranking rating: 1 min. 1 325A
- Intermittent rating: 5 min.900A
- Continuous rating 600A
- Maximum voltage rating 32V DC
- Terminal stud size 1/2 in. (M12)
- Terminal stud torque 220 in.-lbs. (24.86 N?m) max.
- Mounting holes accept 1/4 in. (M6) screw
- Cable size to meet ratings 4/0 AWG (95mm?)
- Cable quantity to meet ratings two cables
- Cable clearance for 4/0 AWG cables 1.10 in. (27.9mm)
