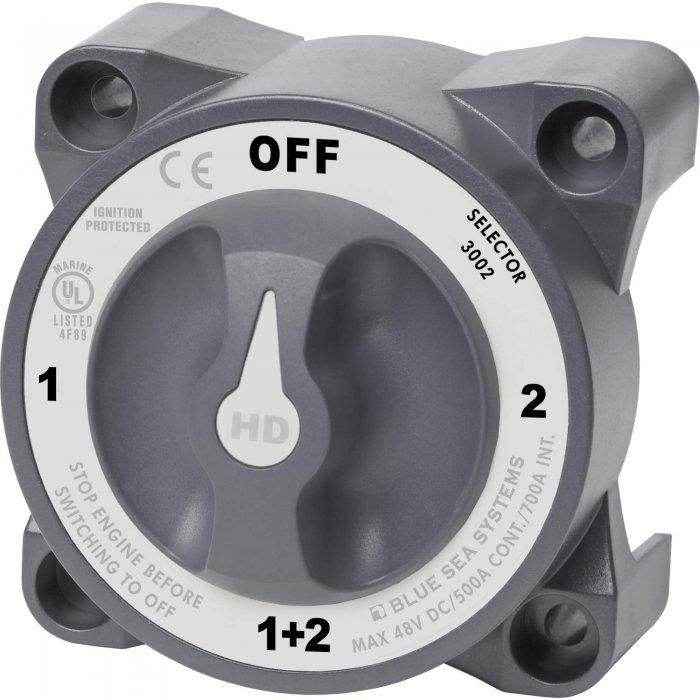

Blue Sea Systems Heavy Duty Battery Switch Selector 4 Position 3002
Blue Sea 3002 HD Series Heavy Duty Selector 4 Position Battery Switch
-
HD Series Heavy Duty Selector 4 Position Battery Switch -
Switches isolated battery banks to all loads or combines battery banks to all loads -
Make-before-break contact design allows switching between battery banks without power interruption -
Meets American Boat and Yacht Council (ABYC) requirements for battery switches -
Ignition protected?safe for installation aboard gasoline powered boats -
Case design allows surface or rear panel mounting -
Accepts two 4/0 AWG (95mm?) battery cables -
Cranking rating: 10 sec. 2 750As -
Cranking rating: 1 min. 1 150A -
Intermittent rating: 5 min.700A -
Continuous amperage: 500A -
Maximum voltage rating: 32V DC -
Terminal stud size: 1/2 in. (M12) -
Terminal stud torque: 220 in.-lbs. (24.86 N?m) max. -
Mounting holes accept 1/4 in. (M6) screw -
Cable size to meet ratings 4/0 AWG (95mm?) -
Cable quantity to meet ratings two cables / terminal -
Cable clearance for 4/0 AWG cables 1.10 in. (27.9mm)
