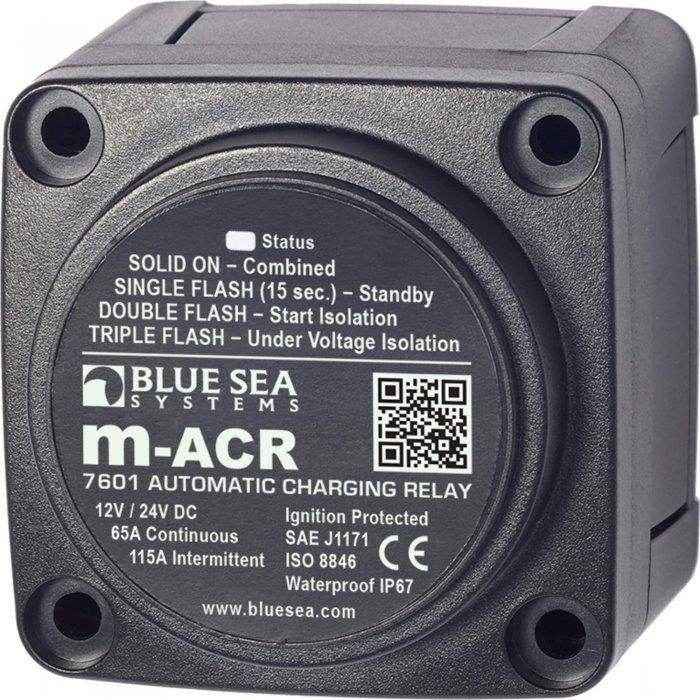

Blue Sea M-Series Automatic Charging Relay 7601

Blue Sea M-Series Automatic Charging Relay 7601

65 amp rated mini ACR is designed to automatically combine batteries during charging & to isolate batteries when they are discharging or at rest.

•
  Blue Sea m ACR automatic charging relay
•
  Manages the charging current from alternators up to 65 amps found on most outboard and inboard engines
•
  Optional start isolation protects electronics from voltage drops and spikes during engine cranking
•
  Compact case design allows surface, rear, and panel mounting options
•
  Senses charging from two separate sources
•
  Snap-on cover insulates terminal connections to prevent accidental grounding
•
  LED indicator displays ACR status
•
  12 volt or 24 volt DC nominal voltage
•
  65 amp continuous rating
•
  115 amp intermittent rating
•
  Requires 6 AWG cable size to meet current ratings
•
  Accepts up to 1/0 AWG maximum cable size
•
  1/4”-20 terminal stud size
•
  1 /4 in. x .032 in. male quick connect terminal for ground
•
  7/16 in. (11 mm) stud length to accept multiple cable terminals
•
  One piece stainless flange nuts ensures secure connections
•
  Waterproof rated IP67 - temporary immersion for thirty minutes
•
  Meets ISO 8846 and SAE J1171 – ignition protection requirements
•
  CE marked
