Blue Sea M-Series Battery Switch Dual Circuit Plus 6011
Blue Sea M-Series Battery Switch Dual Circuit Plus 6011
Blue Sea Systems
63 in stock
Couldn't load pickup availability

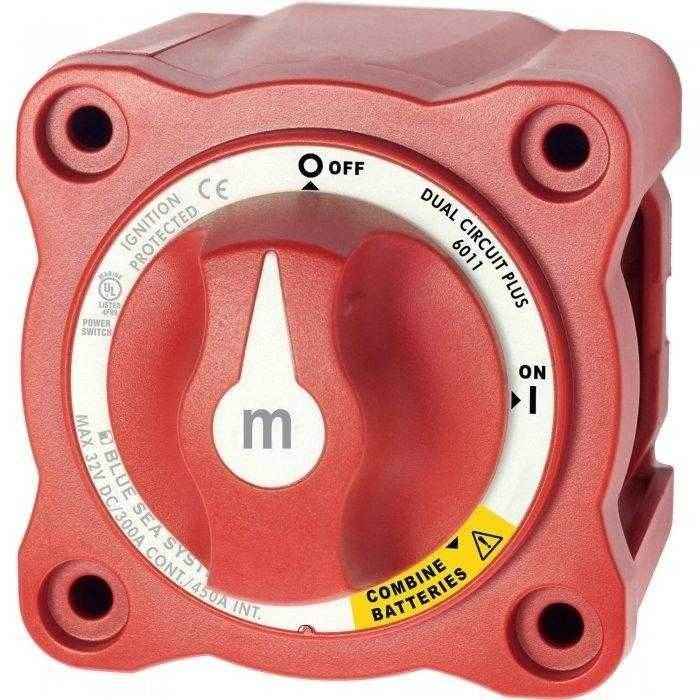

Blue Sea Systems Red M-Series Battery Switch Dual Circuit Plus 6011
Mini dual circuit switch simultaneously switches two isolated battery banks or combines battery banks to all loads for outboard, small gasoline, or small diesel engine applications.
-
Blue Sea dual circuit plus battery switch -
m Series -
Simultaneously switches two isolated battery banks or combines all banks to loads -
Case design allows surface front panel, flush mount, or rear panel mounting -
Cover with snap-on sections protect rear terminals from accidental grounding -
Breakout tabs allow cable routing from many different angles -
Front panel, rear panel, and surface mounting options -
Molded in durable reinforced polycarbonate -
Tin-plated copper studs accept 3/8''-16 (M10) ring terminals -
7/8 in. long stud accepts multiple cable terminals -
Accepts up to 4/0 battery cables -
Constructed of non-corrosive marine grade metals -
300 amp DC continuous rating -
450 amp DC intermittent rating -
675 amp DC 30 second cranking rating per circuit -
32 volts DC maximum operating voltage -
Accepts #10 mounting screws – sold separately -
2.95 in. diameter x 3.328 in. depth -
IP 66 rated against dust ingression and water intrusion -
ISO 8846 marine -
Meets UL 1500 and SAE J1171 marine ignition protection requirements -
Meets UL 1107 standards for electric power switches -
CE certified
