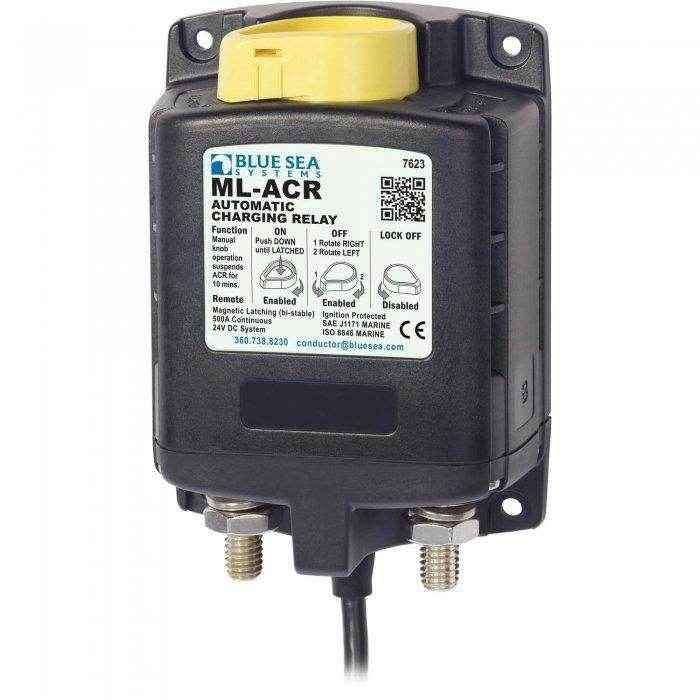

Blue Sea Ml-Series Heavy Duty Automatic Charging Relay 7623

Blue Sea Systems Ml-Series Heavy Duty Automatic Charging Relay 7623

500 amp rated ML-ACR automatically combines (2) 24 volt DC battery banks during charging & isolates batteries when they are discharging or when starting engines.

•
  ML-ACR automatic charging relay with manual override control
•
  Manual control switch provides an added level of safety allowing control with or without power
•
  Control switch can be locked in OFF position for safety during servicing
•
  Start isolation can be configured for temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
•
  Engine Isolation can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
•
  Magnetic Latch ACR draws very low current to monitor terminal voltage in the "ON" or "OFF" states
•
  Allows paralleling of battery banks for emergency starting
•
  Automatically manages the charging of two large battery banks
•
  Senses charging from two separate sources
•
  LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in start or engine isolation
•
  Includes Remote Control Contura Switch PN 2146 (ON-OFF-ON action)
•
  24 volt DC coil voltage
•
  Bi-stable ML-coil function
•
  500 amp continuous rating
•
  700 amp intermittent rating
•
  3/8”-16 (M10) tin-plated copper terminal stud
•
  7/8 in. (22 mm) stud length to accept multiple cable terminals
•
  1 /4 in. x .032 in. male quick connect terminal for ground
•
  Silver alloy contacts provide high reliability for switching live loads
•
  One piece stainless flange nuts ensures secure connections
•
  Stripped wire cable end
•
  Label recesses for circuit identification
•
  Waterproof rated IP66 – protected against powerful water jets
•
  Meets ISO 8846 and SAE J1171 – ignition protection requirements
•
  CE marked
