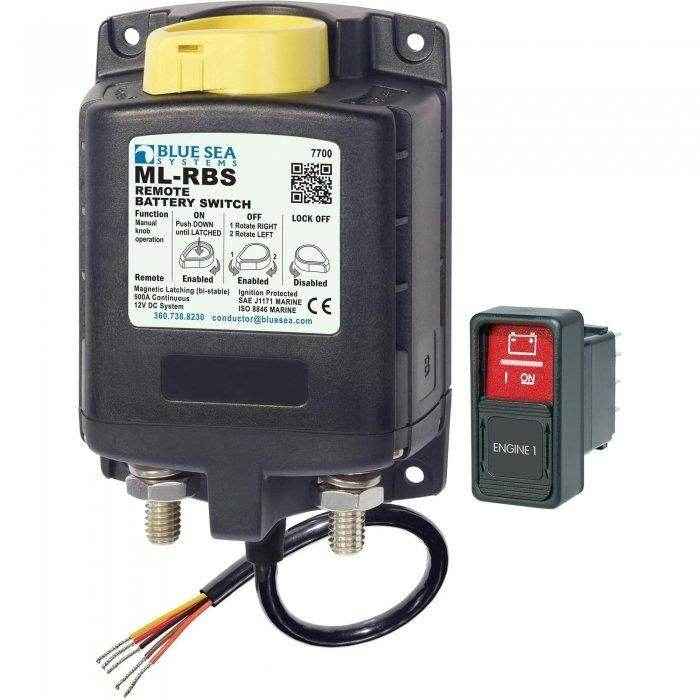

Blue Sea Systems Ml-Series Heavy Duty Remote Battery Switch 7700
500 amp magnetic latching battery switch allows remote or manual high amperage switching under load.
-
Blue Sea ML series remote battery switch -
12 volt DC (9V-16V control circuit voltage) -
Includes ML-series remote control contura switch P/N 2145 -
Manual control switch provides an added level of safety by allowing control with or without power -
Locked Off feature for safety during servicing -
Magnetic latching draws no current in ON or OFF state and only draws current when changing state of switch -
Silver alloy contacts provides high reliability for switching live loads -
LED output indicates switch state with addition of LED light – sold separately -
500 amp DC continuous rating -
700 amp DC intermittent rating -
1,450 amp DC 30 second cranking rating -
32 volts DC maximum operating voltage -
3/8”-16 tin-plated copper studs for excellent conductivity and corrosion resistance -
7/8 in. stud length accepts multiple cable terminals -
One piece stainless flange nuts ensures secure connections -
1.12 in. terminal ring diameter clearance -
Label recesses for circuit identification labels -
IP 66 rated against dust ingression and water intrusion -
ISO 8846 marine -
Meets SAE J1171 marine ignition protection requirements -
CE certified
