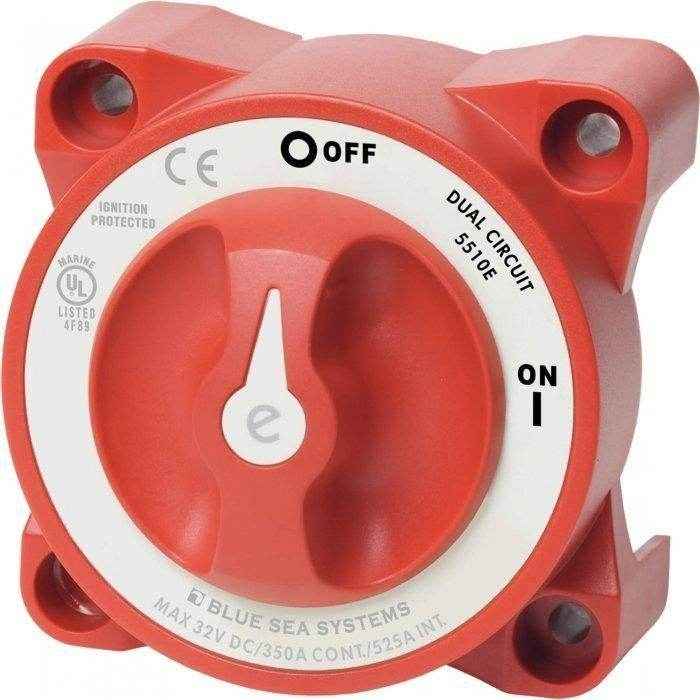

Blue Sea Systems Red E-Series Battery Switch Dual Circuit 5510E
-
Red E-Series Dual Circuit Battery Switch -
Simultaneously switches two isolated battery banks -
Ignition protected?safe for installation aboard gasoline powered boats -
Case design allows surface or rear panel mounting -
Meets American Boat and Yacht Council (ABYC) requirements for battery switches -
Cranking rating: 10 sec. 1 000A -
Cranking rating: 1 min. 750A -
Intermittent rating: 5 min. 525A -
Continuous rating 350A -
Maximum voltage rating 32 Volts DC -
Terminal stud size 3/8 in.-16 (M10) -
Terminal stud torque 140 in.-lbs. (15.82 N?m) max. -
Mounting holes accept 1/4 in. (M6) Screw -
Cable size to meet ratings 4/0 AWG (95mm?) -
Cable clearance for 4/0 AWG cables 1.10 in. (27.9mm) -
Weight lbs. (Kg) 1.16 (0.53) -
Replaces Blue Sea Systems P/N 5510E200
