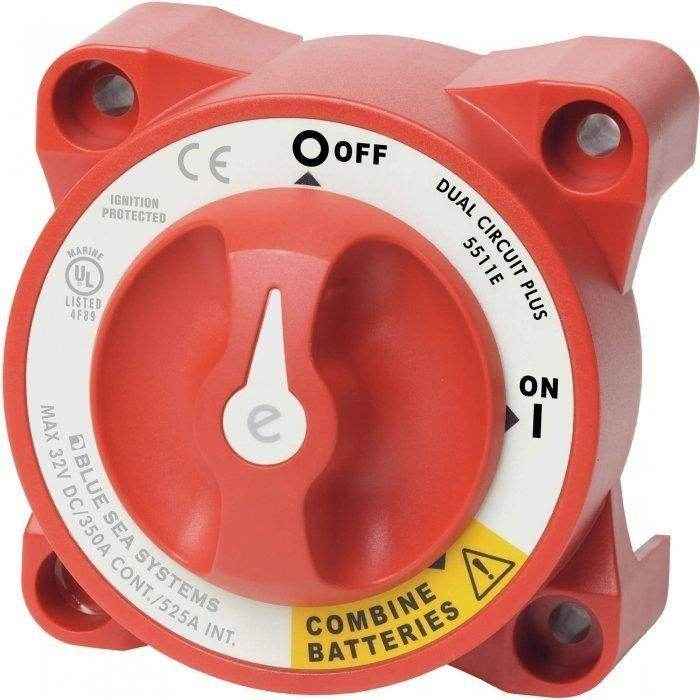

Blue Sea Red E-Series Battery Switch Dual Circuit 5511E
Blue Sea Red E-Series Battery Switch Dual Circuit 5511E
Blue Sea Systems
Low Stock: 3 left
Couldn't load pickup availability
Blue Sea Systems Red E-Series Battery Switch Dual Circuit Plus 5511E
Simultaneously switches two isolated battery banks or combines battery banks to all loads for inboard gasoline or diesel engine applications.
-
Blue Sea dual circuit plus battery switch -
e Series -
Simultaneously switches two isolated battery banks or combines all banks to loads -
Make-before-break contact design allows switching without power interruption -
Case design allows surface or rear panel mounting -
Molded in durable reinforced polycarbonate -
Tin-plated copper studs accept 3/8''-16 (M10) ring terminals -
7/8 in. long stud accepts multiple cable terminals -
Accepts up to 4/0 AWG battery cables -
Constructed of non-corrosive marine grade metals -
350 amp DC continuous rating -
525 amp DC intermittent rating -
700 amp DC 30 second cranking rating per circuit -
32 volts DC maximum operating voltage -
Accepts 14 in. (M6) mounting screws – sold separately -
3.85 in. diameter x 3.097 in. depth -
Designed to fit most standard Perko and Guest battery switch hole patterns -
IP 66 rated against dust ingression and water intrusion -
ISO 8846 marine -
Meets UL 1500 and SAE J1171 marine ignition protection requirements -
Meets UL 1107 standards for electric power switches -
CE certified -
Replaces Blue Sea Systems P/N 5511E200
