Blue Sea Solenoid Add A Battery Mini 7649

Blue Sea Systems Solenoid Add A Battery Mini 7649

Battery switch & m-ACR kit automatically combines battery banks during charging, isolates batteries when they are discharging, & allows combining of banks for emergency starting.

•

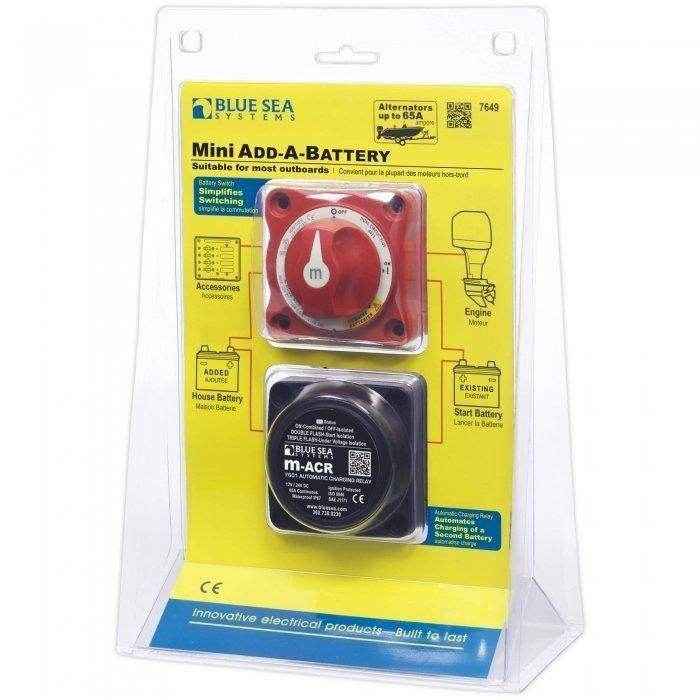

  Blue Sea Mini-Add-A-Battery kit
•
  Kit includes (1) Blue Sea 6011 Dual Circuit battery switch and (1) Blue Sea 7601 m-ACR automatic charging relay
•
  The perfect way to charge both a starting battery and a house battery from 1 alternator
•
  Designed to switch 2 battery banks simultaneously while maintaining battery bank isolation
•
  ACR combines batteries to share the charge when engine is on
•
  ACR isolates the battery banks to protect the starting battery from discharge when engine is off
•
  Allows for the combining of battery banks for emergency engine starting
•
  Start isolation temporarily separates house loads from engine circuit during engine cranking to protect sensitive electronics
•
  Senses charging from two separate battery banks
•
  Designed for use with most outboards
•
  65 amp continuous rating
•
  12V or 24V DC voltage input
•
  LED indicator displays ACR status
•
  Meets ISO 8846 and SAE J1171 – ignition protection requirements
•
  Dual Circuit Plus battery switch is waterproof rated IP66 – protected against powerful water jets
•
  m-ACR is waterproof rated IP67 - temporary immersion for thirty minutes
•
  CE marked
