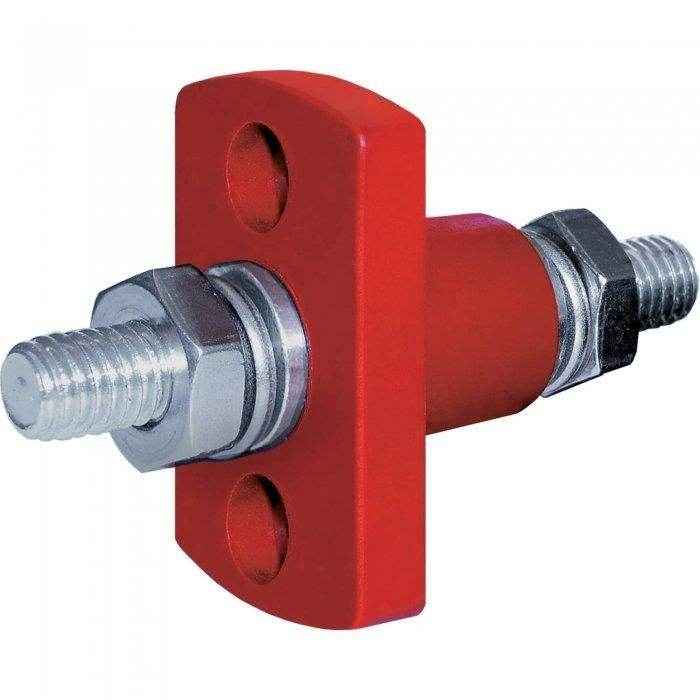

Blue Sea Terminal Feed Through Connectors 2202

Blue Sea Systems Terminal Feed Through Connectors 2202

5/16”-18 red terminal connector for passing high current through hulls, decks, and bulkheads.

•
  Blue Sea terminal feed through connector
•
  5/16 in. - 18 stud size feed through black terminal connector
•
  Red base made of reinforced thermoplastic
•
  48 volts DC maximum voltage rating
•
  250 amps amperage rating
•
  Tin-plated copper alloy stud material
•
  One piece serrated flange nut ensures secure connections
•
  Eliminates chafing and provides strain relief of cables
•
  Large terminals have a mounting face that can be gasketed or bedded to provide a water-tight installation
•
  #10 (M5) mounting screw holes
•
  Rated IP66 – withstands water from heavy seas
