Blue Sea Systems
Blue Sea Terminal Feed Through Connectors 2204
Blue Sea Terminal Feed Through Connectors 2204
Regular price
$29.44 USD
Regular price
$0.00 USD
Sale price
$29.44 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

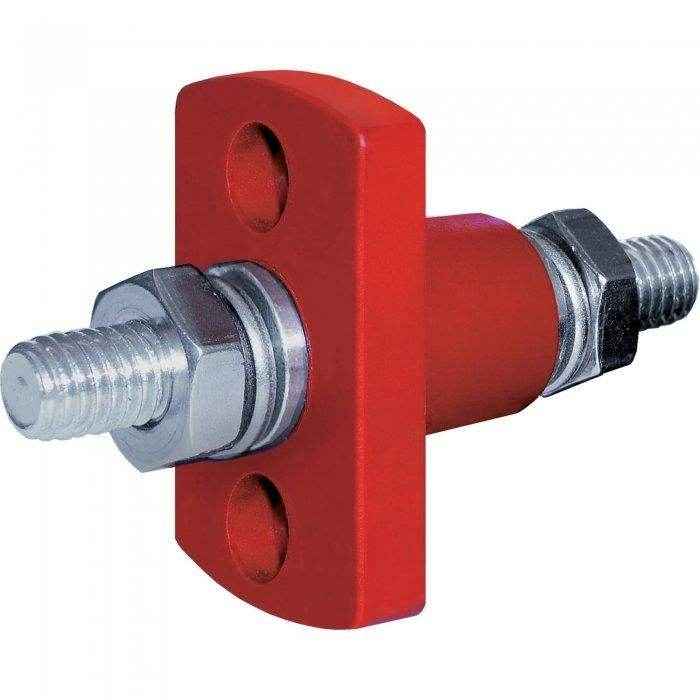

Blue Sea Systems Terminal Feed Through Connectors 2204
3/8”-16 red terminal connector for passing high current through hulls, decks, and bulkheads.
-
Blue Sea terminal feed through connector -
3/8 in. - 16 stud size feed through black terminal connector -
Red base made of reinforced thermoplastic -
48 volts DC maximum voltage rating -
250 amps amperage rating -
Tin-plated copper alloy stud material -
One piece serrated flange nut ensures secure connections -
Eliminates chafing and provides strain relief of cables -
Large terminals have a mounting face that can be gasketed or bedded to provide a water-tight installation -
#10 (M5) mounting screw holes -
Rated IP66 – withstands water from heavy seas
