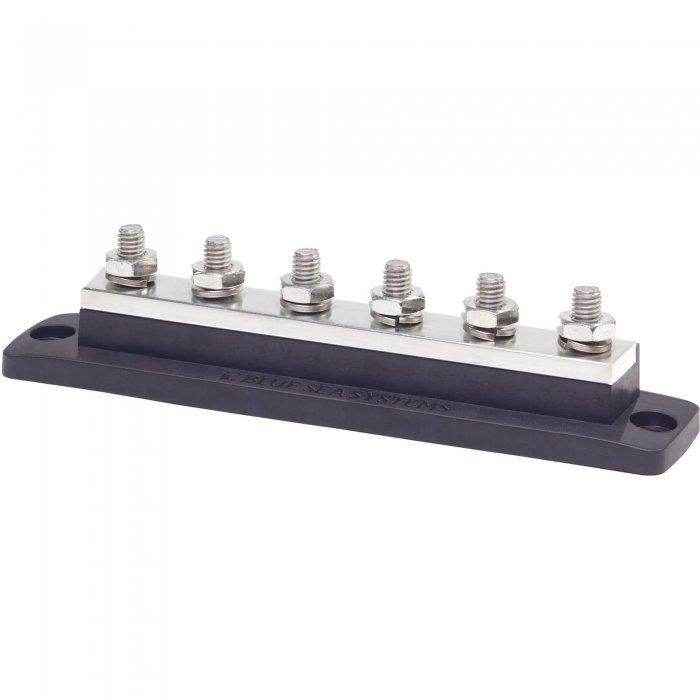

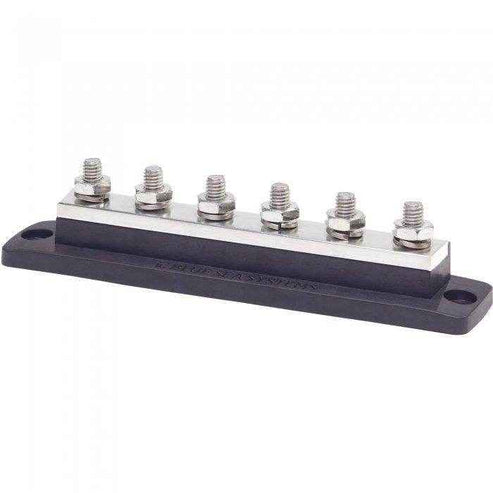

BusBar MaxiBus 250 amp | Blue Sea 2126

BusBar - Blue Sea Systems Maxibus 6 X 5/16 Stud Common | 2126

BusBar MaxiBus 250 amp | Blue Sea 2126

(6) 5/16”-18 terminal stud busbar is designed for the distribution of positive wires or the collection of negative returns.

• 250 amp MaxiBus common busbar
• 2 x 5/16-18 in. terminal studs
• 250 amp AC/DC continuous rating
• 300 volts AC maximum voltage
• 48 volts DC maximum voltage
• Tin-plated copper CDA 110/UNS11000 bus material
• 7 3/4 in. long
• 7.125 in. mounting centers
• Accepts #10 (M5) mounting screws
• CE certified
• Insulating cover (sold separately) features breakouts for wire access from multiple angles
• Meets ABYC insulation requirements when used with insulating cover
• Insulating cover P/N 2718
