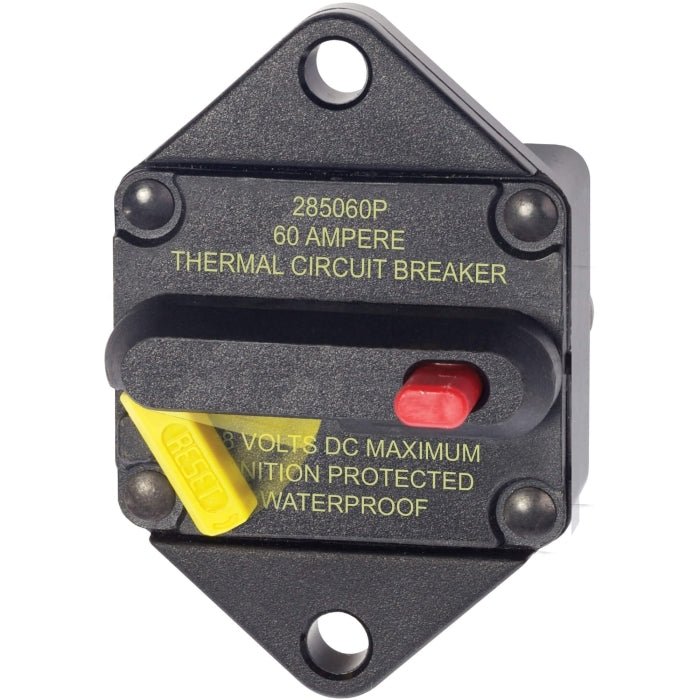

Circuit Breaker 285-Series - Panel Mount 60A | Blue Sea 7084

Circuit Breaker 285-Series - Panel Mount 60A | Blue Sea 7084

Circuit Breaker 285-Series - Panel Mount 60A | Blue Sea 7084

The 285-Series Circuit Breaker by Blue Sea (model 7084) is a robust panel-mounted device rated for 60A DC, designed to integrate switching and circuit protection in one unit. Featuring a bright yellow reset lever for easy visual confirmation of an open circuit, it is ideal for securing medium-sized battery banks. Its trip-free design prevents holding the breaker on under fault conditions, ensuring reliable protection. Suitable for up to 48 volts DC and capable of interrupting 3000 amps, it accepts heavy-gauge wiring via M6 terminal studs. Waterproof and ignition protected to SAE J1171 standards, it meets CE and IP67 certifications, making it safe and durable for marine environments. This breaker is a direct replacement for the older 185 series, offering seamless upgrades in a compact 1.9 x 2.91 x 1.77 inch package.

Panel mount thermal circuit breaker combines switching & circuit protection into one device.

• Blue Sea 285 series panel mount circuit breaker
• 60 amps DC rating
• Bright yellow reset lever for visual identification of open circuit
• Ideal for main circuit protection of medium size battery banks
• Combines switching and circuit protection into a single device
• Trip-free design cannot be held ON during fault current condition
• Not to be used where high inrush currents are expected
• Type III class – switchable/manual reset
• 48 volts DC maximum voltage
• 3000 amps interrupt capacity @ 48 volts DC
• M6 terminal studs accept 1/4 in. ring terminals for heavy duty gauge wire
• Waterproof for use in areas that may experience water spray
• Drop in replacement for 185 series circuit breakers
• 1.9 in. width x 2.91 in. height x 1.77 in. depth
• SAE J1171 ignition protected – safe for installation aboard gasoline powered boats
• CE marked
• IP67 – protected against immersion up to 1 meter for 30 minutes
