Circulation Pump DC Driven 5.3 GPM | Johnson Pump 10-24503-03
5.3 GPM DC Driven Circulation Pump | Johnson Pump 10-24503-03

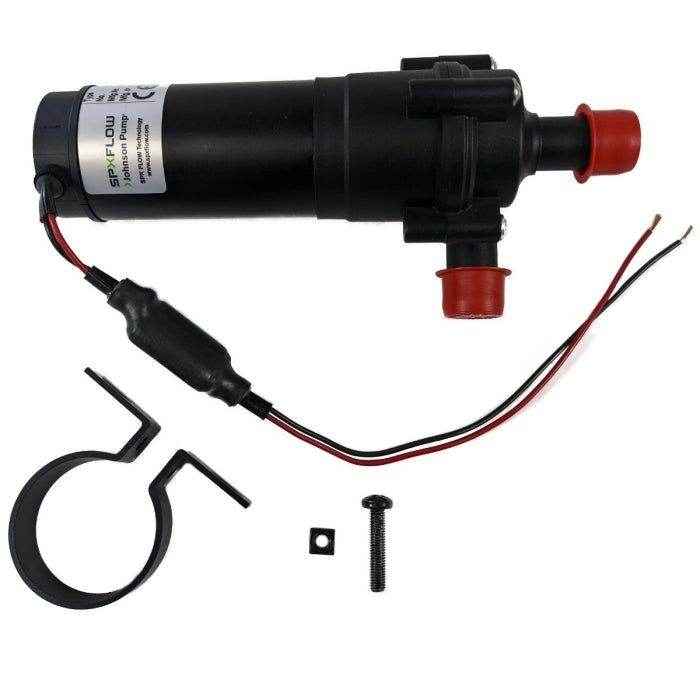

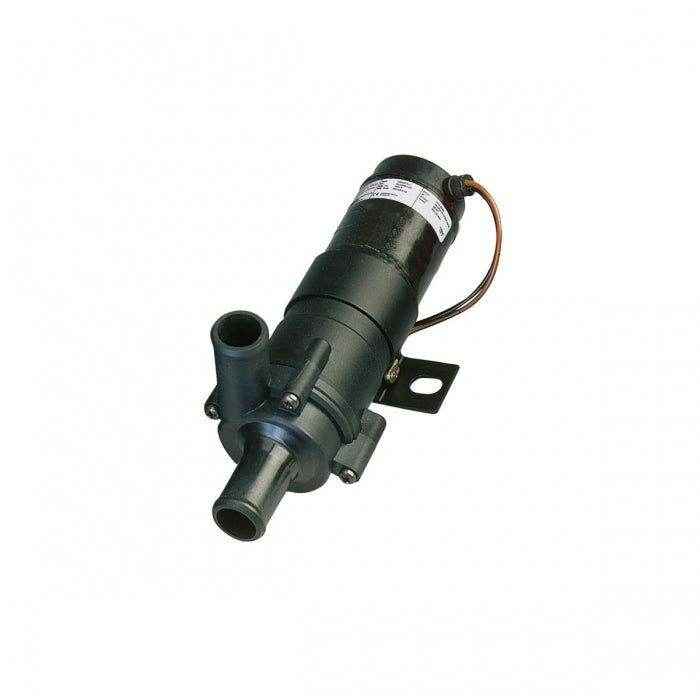

SPX Flow Johnson Pump CM30P7-1 model 12 volt centrifugal pump rated at 5.3 gpm with 5/8 inch ports is suitable for fresh water, salt water, & ethylene glycol circulation.
- Johnson Pump CM30 circulation pump
- CM30P7-1 series
- 12 volt DC operation
- Provides 5.3 GPM flow rate with low current consumption
- 5/8 in. inlet and outlet hose connections
- Magnetic drive pump's leak proof design eliminates the need for shaft seal
- Pumps up to 60% glycol mixture
- Runs dry without damaging pump
- Capable of handling temperatures from -40 degrees to 200+ degrees Fahrenheit
- Replacement impeller and shaft kit P/N 09-46551
- 6.97 in. length x 2.68 in. width x 3.35 height
- CE marked
- ISO 8846 – ignition protected against surrounding flammable gases
