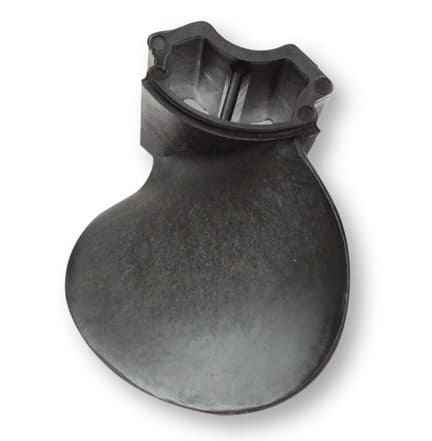

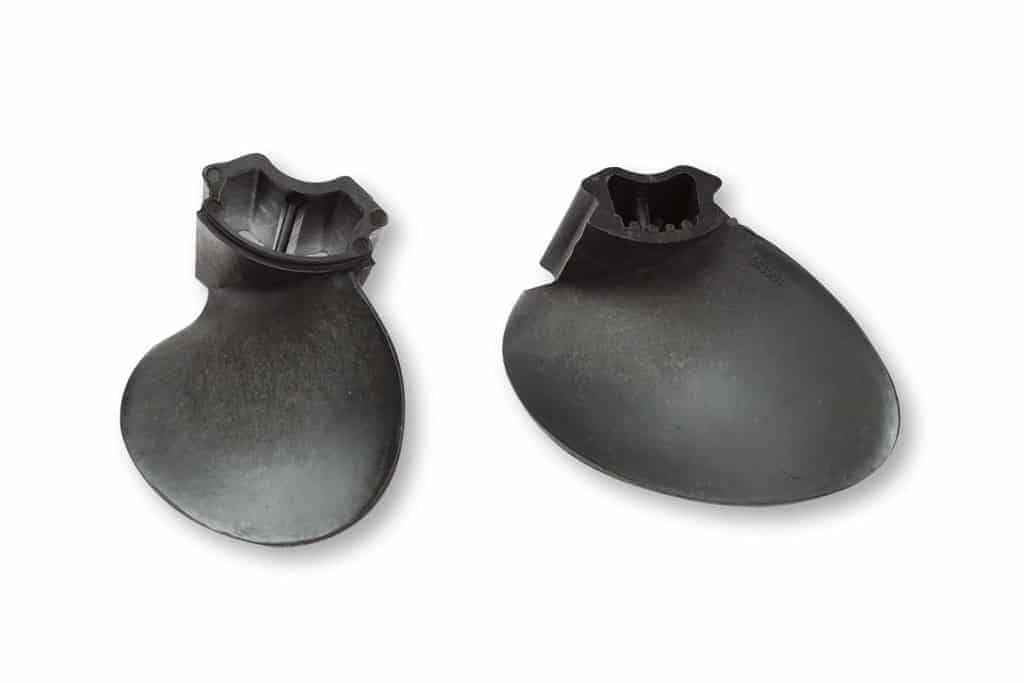

Piranha Propellers 1011D - D3 Replacement Blade, 10 x 11 RH
Service your right-hand Piranha D3 propeller with the 1011D composite replacement blade. It forms a 10-inch-diameter, 11-inch-pitch propeller when assembled with the correct hub and matching blades. You receive one blade, so match its full reference to the blades you’re keeping when replacing an individual component.
This simple blade design is intended for general low-horsepower use around 25 HP and below. Check your engine, hub and blade clearance before ordering, especially for an E-style application. D- and E-series blades share the Piranha D/E-style modular hub system, but all installed blades must match in pitch, blade style and series group. Replace the full set of blades when changing pitch or style.
Part Specifications
- Part Number: 1011D
- Blade Group: D3
- Assembled Propeller Diameter: 10 inches
- Pitch: 11 inches
- Rotation: Right-hand (RH)
- Material: High-strength composite
- Package Quantity: One replacement blade
- Hub Configuration: Shared Piranha D/E-style modular hub system; confirm engine-specific clearance
- General Motor Range: Approximately 25 HP and below; confirm your specific application
- Blade Matching: All installed blades must match in pitch, blade style and series group
Confirm Fitment Before Ordering
Use the parts diagrams available on our website to help identify the correct propeller components. Alternatively, send us your engine model and serial number by email, text or live chat, and we’ll confirm fitment before ordering. Include your Piranha hub code, existing blade reference, pitch and rotation, with particular attention to blade clearance on E-style applications.
Additional Information
- Vendor: Piranha Propellers
- Part Number: 1011D
- Kit Contents: One replacement blade
Need three matching blades? See the Piranha 1011D 10 x 11 RH three-blade replacement set.
Installation Notes
Refer to the applicable Piranha modular-propeller instructions and engine service manual for matched-blade selection, clearance checks, assembly and fastening requirements.
Frequently Asked Questions
Q: Can I replace one blade without changing pitch?
A: Yes, when this blade matches the other installed blades in pitch, blade style and series group. Follow the applicable inspection and assembly guidance before reusing the remaining components.
Q: Can I combine 1011D with a 10.5-inch-pitch blade?
A: No. All installed blades must match in pitch, blade style and series group. Replace the full set of blades when changing pitch or style.
Q: Do I still need to check clearance if it fits my D/E hub?
A: Yes. Hub fit alone does not confirm adequate clearance around your engine, particularly on some E-style applications. Check the complete setup before ordering.
Q: Is 1011D for right-hand rotation?
A: Yes. This reference is specified for right-hand rotation. Contact us before ordering if you need help choosing blades for a left-hand assembly.
Q: Will it fit any engine under 25 HP?
A: Not necessarily. The approximate horsepower range is a starting point, not a fitment guarantee. Match your engine, hub code, clearance and complete blade configuration.
