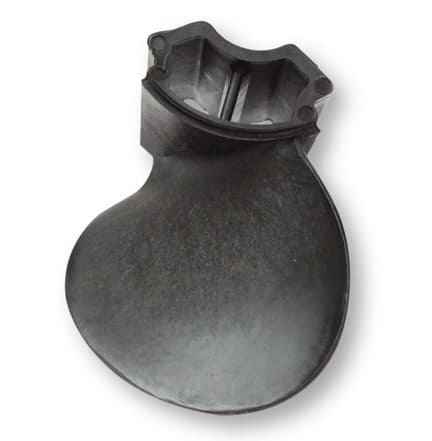

Piranha Propellers 1013D - D3 Replacement Blade 10 x 13 RH, Single Blade

Piranha Propellers 1013D - D3 Replacement Blade 10 x 13 RH, Single Blade

Piranha Propellers

Regular price $17.99 USD
Regular price Sale price $17.99 USD
Sale Sold out
Shipping calculated at checkout.

269 in stock

  • Specified 10-inch diameter and 13-inch pitch identify the right-hand D3 blade configuration.
  • Individual composite service blade offers an alternative to purchasing a three-pack.
  • Shared D/E hub fit requires matched pitch and blade style, plus motor-specific clearance checks.
Quantity

Ordered in the next --h --min | Ships ...
We Proudly Accept
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Fast Shipping
100% Secure
Fast Delivery
Free Ground Shipping on Orders Over $99Exclusions Apply
Marine Parts Specialist Since 2006
Secure Checkout
Flexible Payment OptionsInstallments in partnership with Affirm
Complete SEI Sterndrive ReplacementsFree Ground Shipping to Continental US!
Piranha Propellers, Propulsion and Performance Kits!Free Ground Shipping to Continental US!

Piranha Propellers 1013D - D3 Replacement Blade, 10 x 13 RH

Replace a matching blade in your right-hand Piranha D3 propeller with the 1013D composite replacement blade. When assembled with the correct hub and matching blades, it forms a 10-inch-diameter propeller with 13-inch pitch. You receive one blade, so you can replace an individual matching component without ordering the three-blade set.

This simple blade design is intended for general low-horsepower use around 25 HP and below. Check your engine, hub and blade clearance before choosing it, particularly for an E-style application. D- and E-series blades share the Piranha D/E-style modular hub system, but all installed blades must match in pitch, blade style and series group. Replace the full set of blades when switching pitch or style.

Part Specifications

  • Part Number: 1013D
  • Blade Group: D3
  • Assembled Propeller Diameter: 10 inches
  • Pitch: 13 inches
  • Rotation: Right-hand (RH)
  • Material: High-strength composite
  • Package Quantity: One replacement blade
  • Hub Configuration: Shared Piranha D/E-style modular hub system; confirm engine-specific clearance
  • General Motor Range: Approximately 25 HP and below; confirm your specific application
  • Blade Matching: All installed blades must match in pitch, blade style and series group

Confirm Fitment Before Ordering

Use the parts diagrams available on our website to help identify the correct propeller components. Alternatively, send us your engine model and serial number by email, text or live chat, and we’ll confirm fitment before ordering. Include your Piranha hub code, existing blade reference, pitch and rotation, particularly when checking clearance on an E-style application.

Additional Information
  • Vendor: Piranha Propellers
  • Part Number: 1013D
  • Kit Contents: One replacement blade

Need three matching replacements? Choose the Piranha 1013D 10 x 13 RH three-blade replacement set.

Installation Notes

Refer to the applicable Piranha modular-propeller instructions and engine service manual for matched-blade selection, clearance checks, assembly and fastening requirements.

Frequently Asked Questions

Q: Can I replace one blade if my existing blades have a different pitch?
A: No. All installed blades must match in pitch, blade style and series group. Replace the full set of blades when changing pitch or style.

Q: Will I receive a complete propeller?
A: No. You receive one replacement blade. The linked three-pack supplies three matching blades, not a complete propeller.

Q: What does 10 x 13 mean?
A: It describes the assembled propeller’s 10-inch diameter and 13-inch pitch, not the dimensions of the loose blade.

Q: Can I use 1013D on the shared D/E hub system?
A: Yes, provided the complete setup suits your engine and has adequate blade clearance. Do not mix pitches, blade styles or series groups on one propeller; confirm clearance especially carefully on E-style applications.

Q: Is this blade for right-hand or left-hand rotation?
A: 1013D is specified for right-hand rotation. Contact us before ordering if you need help choosing blades for a left-hand assembly.
