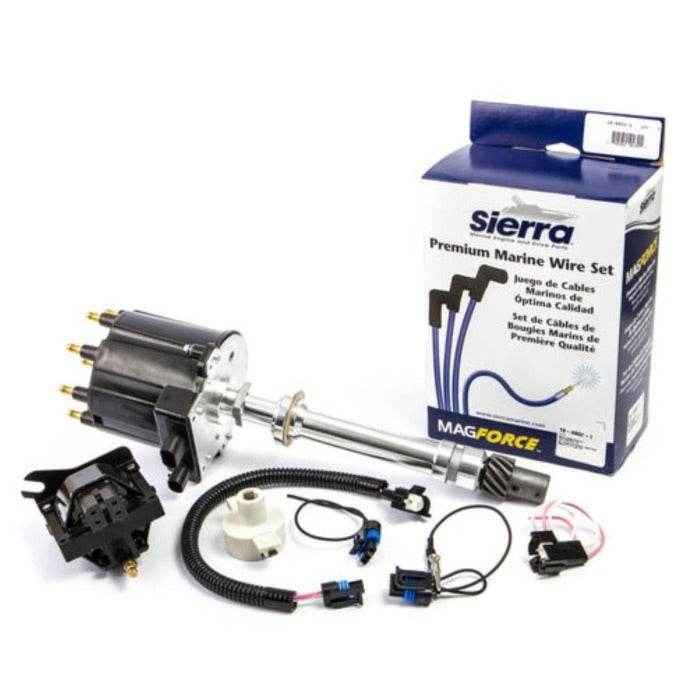

Delco EST Conversion Kit GM V8 | SIERRA 18-5514

Sierra 18-5514 Delco EST Conversion Kit | GM V8 Marine Engine | Replaces Crusader 22752, 22752K

The Sierra #18-5514 is a Delco EST (Electronic Spark Timing) conversion kit for GM V8 marine inboard engines. Converts a GM V8 marine engine from a non-EST (points-type or early electronic) ignition system to a Delco EST distributor-based electronic ignition with computer-controlled spark timing advance. Replaces Crusader 22752 and 22752K. Not eligible for free shipping.

Part Details:

• Part Number: 18-5514 (Sierra)
• SKU: SIERRA-18-5514
• Manufacturer: Sierra / Delco
• Type: EST (Electronic Spark Timing) Conversion Kit
• Application: GM V8 marine inboard engines
• Replaces: Crusader 22752, 22752K
• Shipping: Not eligible for free shipping
• Condition: New

Cross-Reference — Replaces:

• Crusader: 22752, 22752K

Additional Information

What Is Delco EST — Electronic Spark Timing:

Delco EST (Electronic Spark Timing) is GM's computer-controlled ignition advance system introduced on marine inboard engines in the 1980s. In a Delco EST system, the distributor sends crankshaft position signals to an Electronic Control Module (ECM), which calculates the optimal ignition timing advance based on engine load, RPM, and operating conditions, then signals the distributor to fire at the correct timing point. This replaces the purely mechanical and vacuum advance systems used in earlier distributors with electronically optimized timing across the full RPM and load range.

Why Convert to EST — Benefits Over Non-EST Ignition:

Converting a GM V8 marine engine from a non-EST ignition system to Delco EST provides:

• Optimized ignition timing across all operating conditions — the ECM adjusts timing advance for load, RPM, and temperature rather than relying on fixed mechanical and vacuum advance curves
• Improved fuel efficiency — electronically optimized timing reduces over- and under-advance that wastes fuel in non-EST systems
• More consistent starting — EST systems provide precise timing during cranking and cold starts where mechanical advance systems are least effective
• Reduced maintenance — EST distributors eliminate points, condenser, and vacuum advance mechanisms; fewer mechanical wear components to service
• Compatibility with marine ECM systems — EST is required for engines managed by a GM marine ECM; non-EST ignition is incompatible with ECM-controlled fuel and ignition management

GM V8 Marine Application — Confirm Compatibility:

The Sierra 18-5514 is designed for GM V8 marine inboard engines. GM V8 marine engines span a wide range of displacements and configurations — confirm the 18-5514 is the correct EST conversion kit for your specific engine model, displacement, and year by cross-referencing Crusader part numbers 22752 or 22752K against your engine's parts documentation, or contact us at MacombMarineParts.com with your engine's model number and serial number for confirmation.

What the Kit Includes — Confirm Contents:

As a complete EST conversion kit, the 18-5514 typically includes the EST distributor and associated components required for the conversion. Confirm the complete kit contents in Sierra's product documentation before ordering to ensure all components required for your installation are included. Some EST conversions may require additional ECM, wiring harness, or module components depending on the starting configuration of the engine.

Not Eligible for Free Shipping:

Due to its size and weight (12 lbs), the Sierra 18-5514 is not eligible for free shipping. Shipping cost will be calculated at checkout based on destination and carrier rates.

Installation Notes:

• Confirm engine model, displacement, and year compatibility before ordering — cross-reference Crusader 22752 or 22752K against your engine parts documentation
• Confirm kit contents cover all components required for EST conversion on your specific engine configuration
• EST conversion may require compatible ECM and wiring harness — confirm system-level compatibility before ordering
• Set ignition timing per the engine manufacturer's specification after installation
• Refer to the Sierra/Delco installation documentation included with the kit for wiring and installation procedure

Frequently Asked Questions

1. What is Delco EST and why would I convert to it?
Delco EST (Electronic Spark Timing) is GM's computer-controlled ignition timing system. It replaces mechanical and vacuum advance with ECM-controlled spark timing optimized for load, RPM, and temperature. Benefits include improved fuel efficiency, more consistent starting, reduced maintenance, and compatibility with GM marine ECM management systems.

2. What GM V8 engines does this kit fit?
The 18-5514 fits GM V8 marine inboard engines that are cross-referenced to Crusader 22752 or 22752K. Confirm your specific engine model, displacement, and year before ordering. Contact us at MacombMarineParts.com with your engine model and serial number for fitment confirmation.

3. What does the kit include?
Confirm complete kit contents in Sierra's product documentation before ordering. A complete EST conversion kit typically includes the EST distributor and associated conversion components. Some installations may require additional ECM or wiring harness components depending on the engine's starting configuration.

4. Is this kit eligible for free shipping?
No — the Sierra 18-5514 is not eligible for free shipping. Shipping cost is calculated at checkout based on destination and carrier rates.

5. What Crusader part numbers does this replace?
Crusader 22752 and 22752K.
