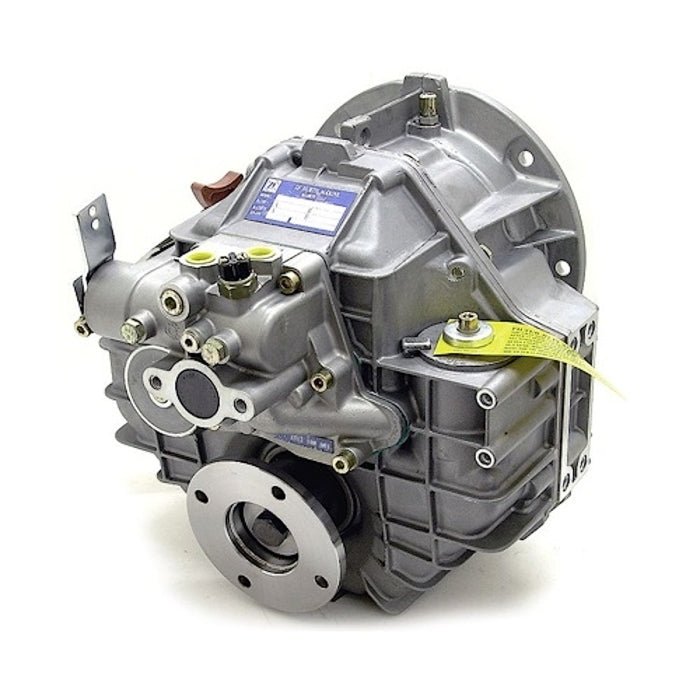

Down Angle Transmission 1.22:1 Ratio | ZF Marine 68A-1.22

Down Angle Transmission 1.22:1 Ratio | ZF Marine 68A-1.22

Down Angle Transmission 1.22:1 Ratio | ZF Marine 68A-1.22

Full reversing design for left hand or right hand propeller shaft rotation in forward Gear ratio A with lever toward flywheel 1.22:1 - Gear ratio B with lever away from flywheel 1.21:1 4 bolt 5 1/4 inch diameter output flange with 4 1/4 inch center-to-center bolt circle Standard left hand flywheel input rotation engines only Mechanical cable shifting - contact us for electric shift Unpainted aluminum transmission case Replaces Hurth model HSW 630A and ZF 63A Weight 97 lbs and ships LTL truck only - Not included in free freight program Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission Replaces ZF Marine 68A-R:1.22 and ZF63A-1.22

• Full reversing design for left hand or right hand propeller shaft rotation in forward
• Gear ratio A with lever toward flywheel 1.22:1 - Gear ratio B with lever away from flywheel 1.21:1
• 4 bolt 5 1/4 inch diameter output flange with 4 1/4 inch center-to-center bolt circle
• Standard left hand flywheel input rotation engines only
• Mechanical cable shifting - contact us for electric shift
• Unpainted aluminum transmission case
• Replaces Hurth model HSW 630A and ZF 63A
• Weight 97 lbs and ships LTL truck only - Not included in free freight program
• Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission
• Replaces ZF Marine 68A-R:1.22 and ZF63A-1.22
