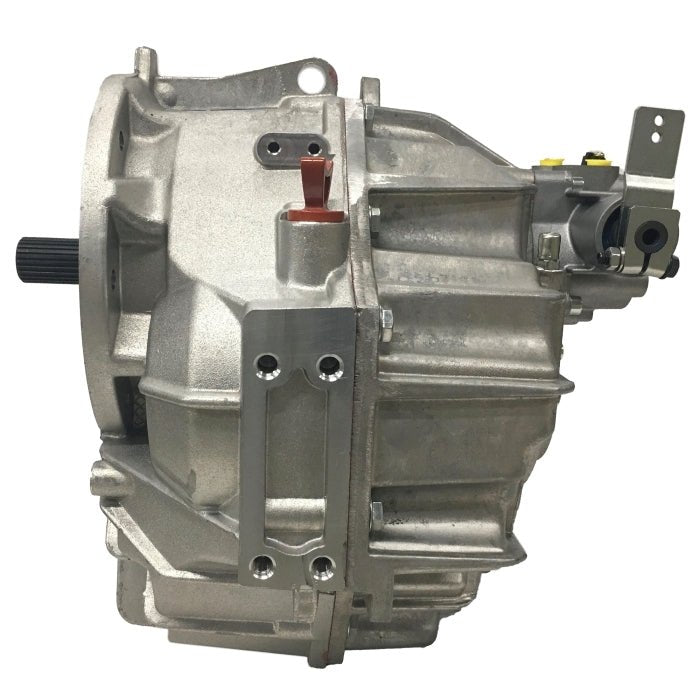

Down Angle Transmission 1.96:1 Ratio | ZF Marine 85A-1.96

Down Angle Transmission 1.96:1 Ratio | ZF Marine 85A-1.96

Down Angle Transmission 1.96:1 Ratio | ZF Marine 85A-1.96

Full reversing design for left hand or right hand propeller shaft rotation in forward 8 Degree down angle output shaft for lower overall installation height Gear ratio A with lever toward flywheel 1.96:1 - Gear ratio B with lever away from flywheel 1.96:1 6 bolt 5-3/4 inch diameter output flange with 4-3/4 inch center-to-center bolt circle Standard left hand flywheel input rotation engines only Mechanical cable shifting - contact us for electric solenoid shift Unpainted aluminum transmission case Weight 152 pounds and ships LTL truck only - Not included in free freight program Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission Replaces Hurth HSW800A, HSW800A2 Replaces ZF80A, ZF80-1A

• Full reversing design for left hand or right hand propeller shaft rotation in forward
• 8 Degree down angle output shaft for lower overall installation height
• Gear ratio A with lever toward flywheel 1.96:1 - Gear ratio B with lever away from flywheel 1.96:1
• 6 bolt 5-3/4 inch diameter output flange with 4-3/4 inch center-to-center bolt circle
• Standard left hand flywheel input rotation engines only
• Mechanical cable shifting - contact us for electric solenoid shift
• Unpainted aluminum transmission case
• Weight 152 pounds and ships LTL truck only - Not included in free freight program
• Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission
• Replaces Hurth HSW800A, HSW800A2
• Replaces ZF80A, ZF80-1A
