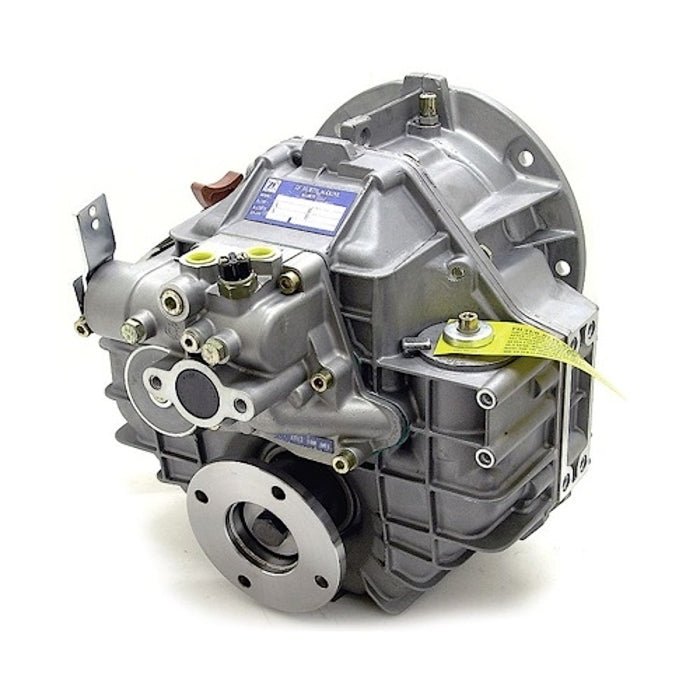

Down Angle Transmission 2.04:1 Ratio | ZF Marine 68A-2.04

Down Angle Transmission 2.04:1 Ratio | ZF Marine 68A-2.04

ZF Marine

$5,828.99 USD
$4,482.93 USD $5,828.99 USD
Sale Sold out
Shipping calculated at checkout.

This Product Does Not Ship Free.

Buy Now Only: 5 Left!

Down Angle Transmission 2.04:1 Ratio | ZF Marine 68A-2.04

Down Angle Transmission 2.04:1 Ratio | ZF Marine 68A-2.04

Full reversing design for left hand or right hand propeller shaft rotation in forward Gear ratio A with lever toward flywheel 2.04:1 - Gear ratio B with lever away from flywheel 2.02:1 4 bolt 5 1/4 inch diameter output flange with 4 1/4 inch center-to-center bolt circle Standard left hand flywheel input rotation engines only Mechanical cable shifting - contact us for electric shift Unpainted aluminum transmission case Replaces Hurth model HSW 630A and ZF 63A Weight 97 lbs and ships LTL truck only - Not included in free freight program Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission Replaces ZF Marine 68A-R:2.04 and ZF63A-2.04 Replaces Crusader RA157022B Replaces Mercury 863744T3, 18901A1, 8M0163799, 8M0188309 Replaces Volvo Penta 21107102, 24446917

!! Not Eligible For Free Shipping !!

  • Full reversing design for left hand or right hand propeller shaft rotation in forward
  • Gear ratio A with lever toward flywheel 2.04:1 - Gear ratio B with lever away from flywheel 2.02:1
  • 4 bolt 5 1/4 inch diameter output flange with 4 1/4 inch center-to-center bolt circle
  • Standard left hand flywheel input rotation engines only
  • Mechanical cable shifting - contact us for electric shift
  • Unpainted aluminum transmission case
  • Replaces Hurth model HSW 630A and ZF 63A
  • Weight 97 lbs and ships LTL truck only - Not included in free freight program
  • Cooler and Flywheel Damper Drive Plate replacement recommended when buying a new transmission
  • Replaces ZF Marine 68A-R:2.04 and ZF63A-2.04
  • Replaces Crusader RA157022B
  • Replaces Mercury 863744T3, 18901A1, 8M0163799, 8M0188309
  • Replaces Volvo Penta 21107102, 24446917
View full details
